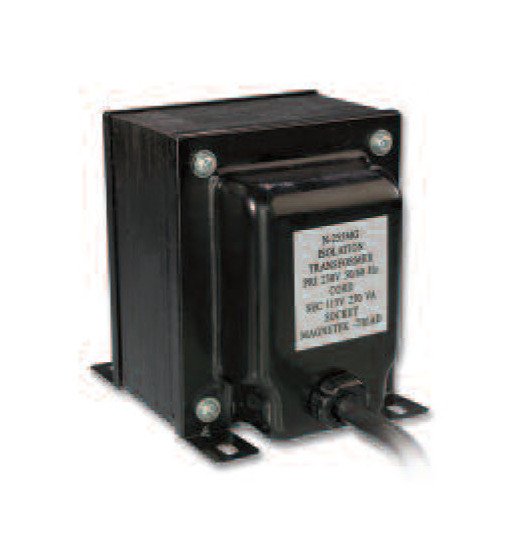

Isolation Power Transformers - Medical Grade 1000W
Isolation Power Transformers - Medical Grade 1000W
SKU:POW-def7d8
Ensure electrical safety with our Medical Grade Isolation Power Transformers for reliable equipment isolation, ideal for medical settings.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Isolation Power Transformers - Medical Grade 1000W
$249.99
Quantity: 1
Claim Your Seller Account
Isolation Power Transformers - Medical Grade 1000W
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Isolation Power Transformers ensure safe electrical isolation with low leakage current, meeting stringent medical equipment requirements. Designed with nonconcentrically wound coils and a resettable circuit breaker for overload protection.
Product Specifications
Note Note
With ground wire
Specifications Case Type
M
Specifications Connections
6' Cord, Plug & Socket
Specifications Depth D
7 1/8 in
Specifications Height H
5 5/16 in
Specifications Mounting Depth
6 in
Specifications Mounting Hole Size
1/2 x 1/4 in
Specifications Mounting Width
3 1/2 in
Specifications Output Wattage Va Rating
1,000 W
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
230 V
Specifications Secondary Current
8.700 A
Specifications Secondary Voltage 5
115 V
Specifications Weight
31.00 lb
Specifications Width W
4 1/2 in
Technical Notes Technical Notes
Line cord, plug and receptacle are U.L. listed and verified to meet federal specifications.Connections are by leads, plugs and sockets.Hi-pot tested at 1,500 VRMS.
