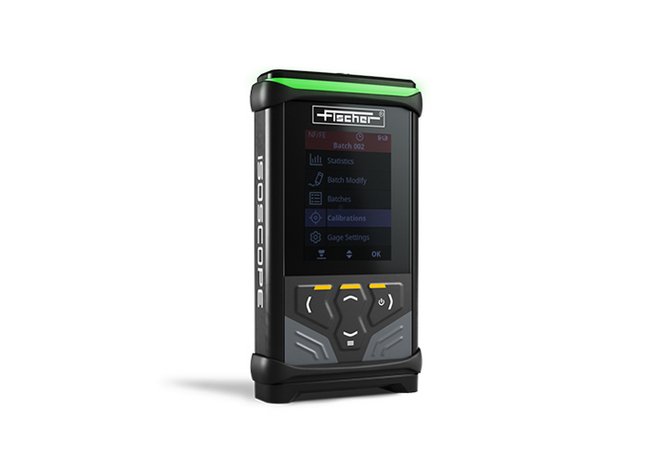

ISOSCOPE® DMP10 Coating Thickness Measurement Instrument
$49.99
Quantity: 1
Claim Your Seller Account
ISOSCOPE® DMP10 Coating Thickness Measurement Instrument
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

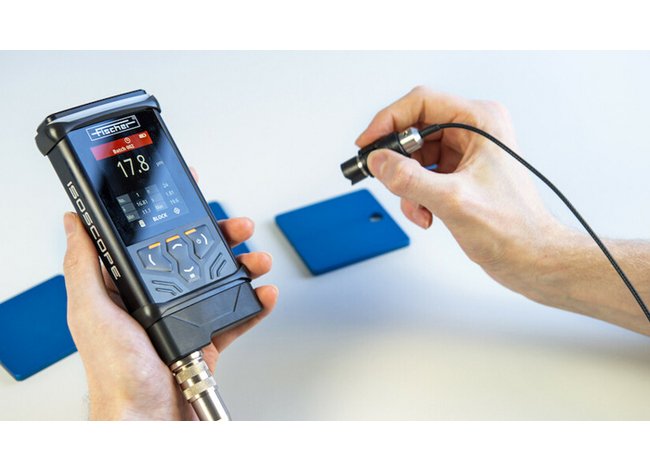

Robust and powerful handheld instrument for coating thickness measurement on non-ferrous metals according to the eddy current method (DIN EN ISO 2360) with exchangeable probes.Supports the FPR1 profile probe for determining the depth of surface profiles according to ASTM 4471.
Product Specifications
Additional Information
The portable FMP10 represent precise measurement technology and are ideal for samples and control measurement. These user-friendly and sturdy instruments can be adapted to all requirements of coating thickness measurement using exchangeable measuring probes. The most significant statistical values are displayed and can be stored together with the calibration in the instrument, ensuring quick and reliable operation.
Features
The portable DMP10 represent precise measurement technology and are ideal for samples and control measurement. These user-friendly and sturdy instruments can be adapted to all requirements of coating thickness measurement using exchangeable measuring probes. The most significant statistical values are displayed and can be stored together with the calibration in the instrument, ensuring quick and reliable operation.
Instrument Features Instrument Features
- Ergonomic aluminum housing- Shockproof, dustproof and waterproof (IP64)- One-handed operation via 4 keys for optimal work- Visual, haptic and acoustic signal for user-defined limit values of specific or all parameters- High contrast, rotating display for any viewing angle- Robust probe connector- USB interface for secure and fast data transfer- Rechargeable lithium battery, up to 24 hours of run time - Intuitive menu navigation allows easy handling even by untrained personnel- Graphic operating aids guide the user through each step of the process- Memory capacity for 10,000 values- Support of digital probes and F-probes (with optional DMP-F-PROBE-ADAPTER)- 22 languages can be set- External charger not included (optionally available)
Instrument Features Measurement Application Memory
- Ergonomic aluminum housing- Shockproof, dustproof and waterproof (IP64)- One-handed operation via 4 keys for optimal work- Visual, haptic and acoustic signal for user-defined limit values of specific or all parameters- High contrast, rotating display for any viewing angle- Robust probe connector- USB interface for secure and fast data transfer- Rechargeable lithium battery, up to 24 hours of run time - Intuitive menu navigation allows easy handling even by untrained personnel- Graphic operating aids guide the user through each step of the process- Memory capacity for 10,000 values- Support of digital probes and F-probes (with optional DMP-F-PROBE-ADAPTER)- 22 languages can be set- External charger not included (optionally available)
Measurement Strategies And Evaluation
- Ergonomic aluminum housing- Shockproof, dustproof and waterproof (IP64)- One-handed operation via 4 keys for optimal work- Visual, haptic and acoustic signal for user-defined limit values of specific or all parameters- High contrast, rotating display for any viewing angle- Robust probe connector- USB interface for secure and fast data transfer- Rechargeable lithium battery, up to 24 hours of run time - Intuitive menu navigation allows easy handling even by untrained personnel- Graphic operating aids guide the user through each step of the process- Memory capacity for 10,000 values- Support of digital probes and F-probes (with optional DMP-F-PROBE-ADAPTER)- 22 languages can be set- External charger not included (optionally available)
Specifications Industry Standardscertifications
American Society for Testing and Materials (ASTM D7091) | European Standards International Organization for Standardization (DIN EN ISO 2360)
Specifications Intended Application
Coating Thickness
Specifications Interfaces
Universal Serial Bus (USB-C)
Specifications Memory Readings
0 to 10000
Specifications Probes
Exchangeable
Specifications Storable Measuring Applications
1
