IST AG P0K1.0805.2P.A Platinum Temperature Sensor
IST AG P0K1.0805.2P.A Platinum Temperature Sensor
SKU:TEM-05901f
IST AG P0K1.0805.2P.A Platinum Temperature Sensor - Reliable, precise, RoHS compliant, ideal for -50 to +150°C range.
Regular price
$6.99
Regular price
Sale price
$6.99
Unit price
per
Initiate Order
IST AG P0K1.0805.2P.A Platinum Temperature Sensor
$6.99
Quantity: 1
Claim Your Seller Account
IST AG P0K1.0805.2P.A Platinum Temperature Sensor
$6.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

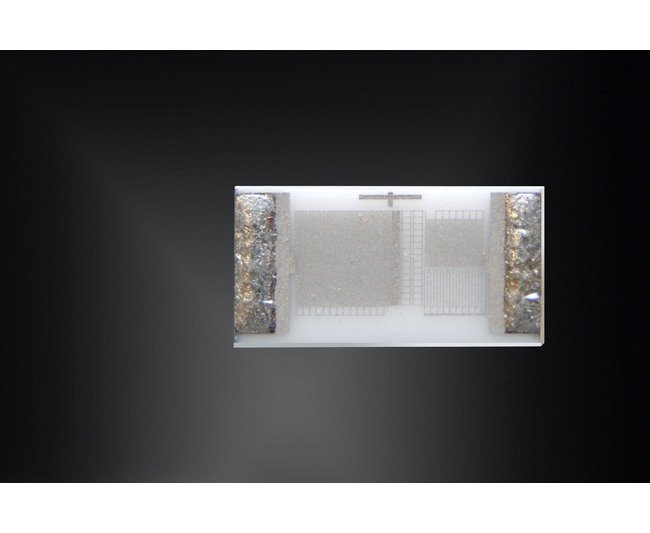

The IST AG P0K1.0805.2P.A Temperature Sensor is a high-quality surface-mount platinum component designed to measure temperature with precision and reliability. With a resistivity of 100 Ω at 0°C and a temperature coefficient of resistance of 3850 ppm/K, this sensor ensures accurate readings in a temperature range of -50 to +150°C. It meets the RoHS directive, IEC standards, and features lead-free tin plated contacts for soldering. The compact dimensions of 2.0mm x 1.2mm x 0.4mm make it ideal for various applications requiring efficient temperature sensing.
Product Specifications
Dimensions Height
0.4 mm
Dimensions Length
2.0 mm
Dimensions Width
1.2 mm
Specifications Manufacturer Part Number
P0K1.0805.2P.A
Specifications Old Product Code
010.01147
Specifications Resistivity At 0 Degree Celsius C Temperature
100 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Soldering Connection
Lead-free Tin Plated Contacts (96.5% Sn, 3% Ag, 0.5% Cu)
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-50 to +150 ºC
Specifications Tolerance
International Electrotechnical Commission (IEC) 60751 F0.15 (IST AG Reference Class A)
Specifications Type
0805
