IST AG P0K1.1206.2P.B Platinum Temperature Sensor
IST AG P0K1.1206.2P.B Platinum Temperature Sensor
SKU:TEM-ca27c1
IST AG P0K1.1206.2P.B Platinum Temperature Sensor, -50 to +150 ºC range, precise measurements, RoHS-compliant
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
IST AG P0K1.1206.2P.B Platinum Temperature Sensor
$24.99
Quantity: 1
Claim Your Seller Account
IST AG P0K1.1206.2P.B Platinum Temperature Sensor
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

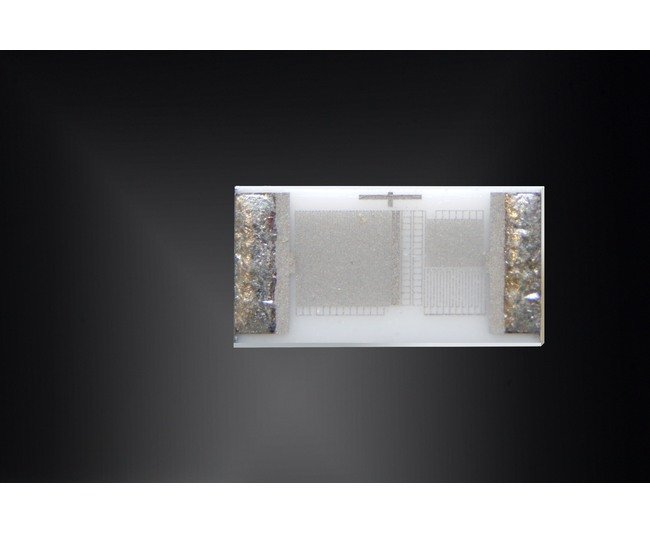

The IST AG P0K1.1206.2P.B is a reliable surface-mount temperature sensor designed for precise measurements in a wide temperature range of -50 to +150 ºC. With a resistivity of 100 Ω at 0 ºC, this sensor ensures accuracy and consistency. It features a Temperature Coefficient of Resistance (TCR) of 3850 ppm/K, meeting IEC 60751 F0.3 standards. RoHS-compliant and equipped with tin-plated contacts, the sensor guarantees high performance and environmental safety.
Product Specifications
Dimensions Height
0.4 mm
Dimensions Length
3.0 mm
Dimensions Width
1.6 mm
Specifications Manufacturer Part Number
P0K1.1206.2P.B
Specifications Old Product Code
010.01132
Specifications Resistivity At 0 Degree Celsius C Temperature
100 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Soldering Connection
Tin Plated Contacts (96.5% Sn, 3% Ag, 0.5% Cu)
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-50 to +150 ºC
Specifications Tolerance
International Electrotechnical Commission (IEC) 60751 F0.3 (IST AG Reference Class B)
Specifications Type
1206
