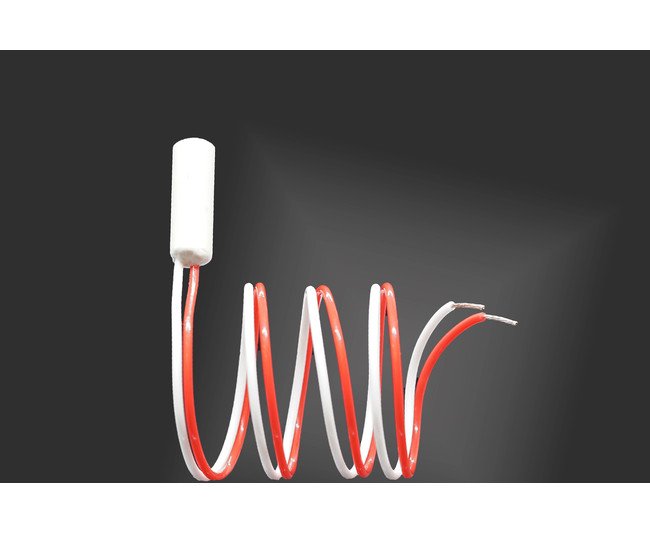

IST AG P0K1.281.2K.B.150.R.S Thin-Film Temperature Sensor
IST AG P0K1.281.2K.B.150.R.S Thin-Film Temperature Sensor
SKU:TEM-2a2c86
High-precision IST AG temperature sensor with 100 Ohm RTD component, RoHS compliant, -50 to +200 ºC range.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
IST AG P0K1.281.2K.B.150.R.S Thin-Film Temperature Sensor
$49.99
Quantity: 1
Claim Your Seller Account
IST AG P0K1.281.2K.B.150.R.S Thin-Film Temperature Sensor
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The IST AG P0K1.281.2K.B.150.R.S is a high-precision, RoHS-compliant temperature sensor designed for reliable temperature measurement in a wide range of -50 to +200 ºC. With a housing diameter of 2.8mm and length of 13mm, this sensor features a 100 Ohm RTD component with a temperature coefficient of resistance of 3850 ppm/K, ensuring accurate and consistent readings. The sensor's housing is round, and the wire is stranded with a 26 AWG size, insulated with Polytetrafluoroethylene (PTFE) material. Meeting IEC 60751 F0.3 (IST AG Reference Class B) tolerance standards, this temperature sensor is ideal for demanding industrial and research applications.
Product Specifications
Specifications Approximate Wire Diameter
150 mm
Specifications Housing
In Round
Specifications Housing Diameter
2.8 mm
Specifications Housing Length
13 mm
Specifications Manufacturer Part Number
P0K1.281.2K.B.150.R.S
Specifications Old Product Code
010.00796
Specifications Resistivity At 0 Degree Celsius C Temperature
100 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Special
Ends 4 mm Stripped
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-50 to +200 ºC
Specifications Tolerance
International Electrotechnical Commission (IEC) 60751 F0.3 (IST AG Reference Class B)
Specifications Wire Insulation
Polytetrafluoroethylene (PTFE)
Specifications Wire Size
26 AWG
Specifications Wire Type
Stranded
