IST AG P1K0.1206.2P.A Temperature Sensor
IST AG P1K0.1206.2P.A Temperature Sensor
SKU:TEM-92f56e
IST AG Temperature Sensor - High-precision SMD platinum RTD component for -50 to +150 ºC temperature range.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
IST AG P1K0.1206.2P.A Temperature Sensor
$24.99
Quantity: 1
Claim Your Seller Account
IST AG P1K0.1206.2P.A Temperature Sensor
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

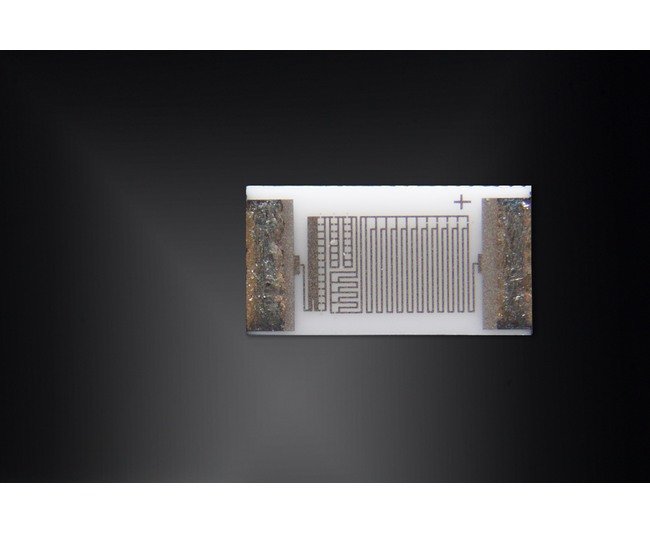

The IST AG P1K0.1206.2P.A Temperature Sensor is a cutting-edge SMD platinum 1000 Ohm RTD component designed for precise temperature measurements in a wide range from -50 to +150 ºC. This sensor boasts exceptional accuracy with a resistivity of 1000 Ω and a temperature coefficient of resistance of 3850 ppm/K. Meeting IEC 60751 F0.15 standards, it ensures reliable performance. With RoHS compliance and tin plated contacts, this sensor guarantees both efficiency and environmental safety in demanding applications.
Product Specifications
Dimensions Height
0.4 mm
Dimensions Length
3.0 mm
Dimensions Width
1.6 mm
Specifications Manufacturer Part Number
P1K0.1206.2P.A
Specifications Old Product Code
010.01136
Specifications Resistivity At 0 Degree Celsius C Temperature
1000 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Soldering Connection
Tin Plated Contacts (96.5% Sn, 3% Ag, 0.5% Cu)
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-50 to +150 ºC
Specifications Tolerance
International Electrotechnical Commission (IEC) 60751 F0.15 (IST AG Reference Class A)
Specifications Type
1206
