IST AG Thin-Film Platinum Temperature Sensor
IST AG Thin-Film Platinum Temperature Sensor
SKU:TEM-f69c6d
IST AG Thin-Film Platinum Temperature Sensor - High-precision 100 Ohm RTD with inversed wires and metallized backside for reliable thermal coupling. RoHS compliant.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
IST AG Thin-Film Platinum Temperature Sensor
$49.99
Quantity: 1
Claim Your Seller Account
IST AG Thin-Film Platinum Temperature Sensor
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

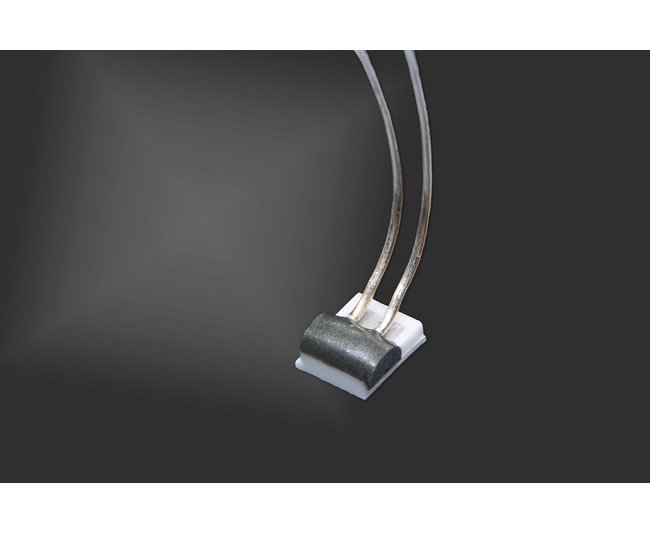

The IST AG Thin-Film Platinum Temperature Sensor P0K1.232.3K.B.010.M.U is a high-precision component designed for accurate temperature measurement in a wide range from -200 to +300 ºC. This sensor features a 100 Ohm RTD with a temperature coefficient of resistance of 3850 ppm/K, ensuring reliable and stable readings. With inversed wires and a metallized backside, this sensor offers excellent thermal coupling, enhancing its performance in demanding applications. Manufactured by Innovative Sensor Technology, USA Division, this sensor complies with RoHS standards and IEC 60751 F0.3 tolerance, guaranteeing quality and safety in temperature sensing.
Product Specifications
Dimensions Height
1.3 mm
Dimensions Length
2.3 mm
Dimensions Width
2.0 mm
Specifications Manufacturer Part Number
P0K1.232.3K.B.010.M.U
Specifications Old Product Code
010.02394
Specifications Resistivity At 0 Degree Celsius C Temperature
100 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Special
Inversed Wires | Metallized Backside
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-200 to +300 ºC
Specifications Tolerance
International Electrotechnical Commission (IEC) 60751 F0.3 (IST AG Reference Class B)
Specifications Wire Diameter
0.25 mm
Specifications Wire Length
10 mm
Specifications Wire Type
Silver (Ag)
