IST AG Thin Film RTD Temperature Sensor - P0K1.232.2I.B.1000-3
IST AG Thin Film RTD Temperature Sensor - P0K1.232.2I.B.1000-3
SKU:TEM-c3f7c4
IST AG Thin Film RTD Temperature Sensor - Accurate, RoHS compliant sensor for precise temperature measurement in industrial environments.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
IST AG Thin Film RTD Temperature Sensor - P0K1.232.2I.B.1000-3
$29.99
Quantity: 1
Claim Your Seller Account
IST AG Thin Film RTD Temperature Sensor - P0K1.232.2I.B.1000-3
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

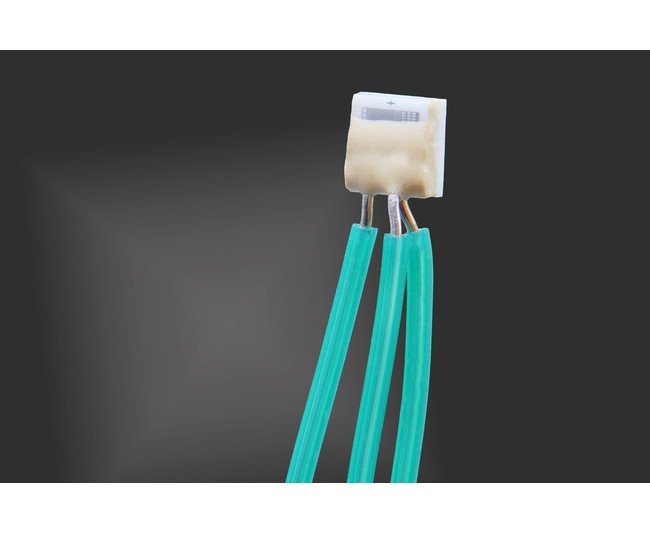

Introducing the IST AG Thin Film RTD Temperature Sensor, featuring a thin-film platinum 100 Ohm RTD component with long copper/silver wires. This sensor offers precise measurement with a resistivity of 100 Ω at 0°C and a temperature coefficient of resistance of 3850 ppm/K. With a wide temperature range of -50 to +200°C and IEC 60751 F0.3 tolerance, this sensor ensures accurate readings. The sensor complies with RoHS standards and comes in a compact size of 2.3mm x 2.0mm x 1.3mm, making it ideal for various industrial and institutional applications.
Product Specifications
Dimensions Height
1.3 mm
Dimensions Length
2.3 mm
Dimensions Width
2.0 mm
Specifications Manufacturer Part Number
P0K1.232.2I.B.1000-3
Specifications Number Of Wires
3
Specifications Old Product Code
010.01761
Specifications Resistivity At 0 Degree Celsius C Temperature
100 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Special
3 Wires
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-50 to +200 ºC
Specifications Tolerance
International Electrotechnical Commission (IEC) 60751 F0.3 (IST AG Reference Class B)
Specifications Wire Insulation
Polytetrafluoroethylene (PTFE)
Specifications Wire Length
100 mm
Specifications Wire Size
30 AWG
Specifications Wire Type
Copper (Cu)/Silver (Ag)
