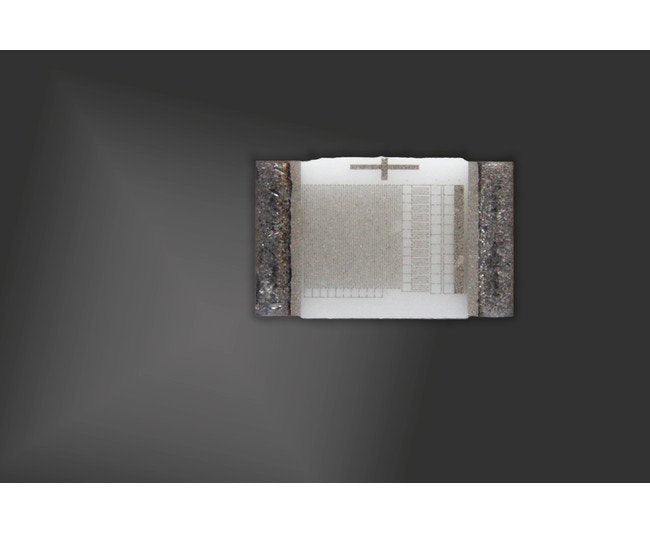

IST FC Platinum 1000 Ohm RTD Temperature Sensor
IST FC Platinum 1000 Ohm RTD Temperature Sensor
SKU:TEM-e4df71
The IST FC Platinum 1000 Ohm RTD Temperature Sensor offers precise temperature measurement with RoHS compliance and wide temperature range.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
IST FC Platinum 1000 Ohm RTD Temperature Sensor
$29.99
Quantity: 1
Claim Your Seller Account
IST FC Platinum 1000 Ohm RTD Temperature Sensor
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The IST FC Platinum 1000 Ohm RTD Temperature Sensor (P1K0.0805.1FC.B) is a high-precision component designed for reliable temperature measurement. Manufactured by Innovative Sensor Technology USA Division, this sensor offers RoHS compliance, ensuring environmental safety. With a resistivity of 1000 Ω at 0°C, a TCR of 3850 ppm/K, and a wide temperature range of -50 to +150°C, it delivers accurate and consistent readings. Meeting IEC 60751 F0.3 standards, this sensor is housed in an 0805 type package with pad-tinned, lead-free LMP soldering connections for easy installation. Dimensions of 2.0mm x 1.2mm x 0.4mm make it compact yet robust, ideal for various applications.
Product Specifications
Dimensions Height
0.4 mm
Dimensions Length
2.0 mm
Dimensions Width
1.2 mm
Specifications Manufacturer Part Number
P1K0.0805.1FC.B
Specifications Old Product Code
010.02557
Specifications Resistivity At 0 Degree Celsius C Temperature
1000 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Soldering Connection
Pad-Tinned, Lead-free LMP Lot
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-50 to +150 ºC
Specifications Tolerance
International Electrotechnical Commission (IEC) 60751 F0.3 (IST AG Reference Class B)
Specifications Type
0805
