IST Flow Sensor FS2T.0.1E.025
IST Flow Sensor FS2T.0.1E.025
SKU:FLO-b8f141
Advanced thermal gas flow sensor with exceptional sensitivity for precise measurement in challenging conditions.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
IST Flow Sensor FS2T.0.1E.025
$99.99
Quantity: 1
Claim Your Seller Account
IST Flow Sensor FS2T.0.1E.025
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

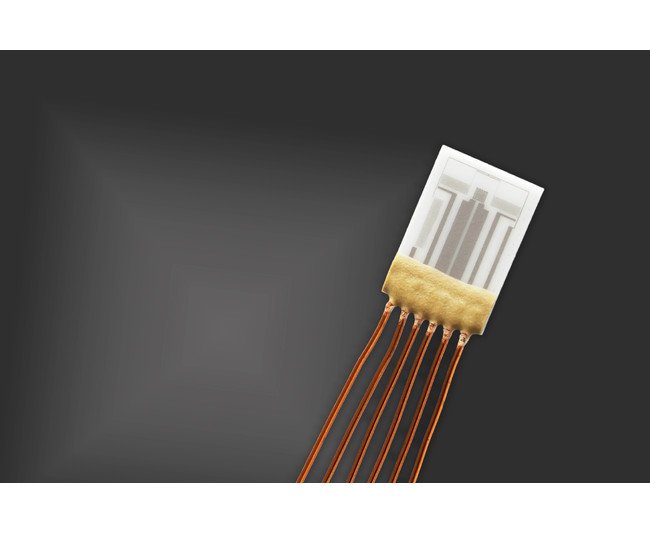

The IST Flow Sensor FS2T.0.1E.025 is a cutting-edge thermal gas flow sensor perfect for precise flow rate measurement even in challenging conditions. With a temperature range of -20 to +150°C and advanced flow direction detection, this sensor offers exceptional sensitivity and accuracy. Designed by Innovative Sensor Technology, USA Division, it features enameled copper wire, dimensional accuracy (5.0mm x 3.5mm x 0.2mm), and a flow range tailored for institutional and government applications. Fulfill your flow sensing needs and ensure reliability with the IST FS2T.0.1E.025 Flow Sensor.
Product Specifications
Dimensions Height
0.2 mm
Dimensions Length
5.0 mm
Dimensions Width
3.5 mm
Flow Range Flow Range Cta Mode
0 to 100 m/s | 0 to 5 L/min
Flow Range Flow Range Half Bridge Mode
0 to 1 m/s | 0 to 50 mL/min
Specifications Manufacturer Part Number
FS2T.0.1E.025
Specifications Old Product Code
050.00130
Specifications Temperature Range
-20 to +150 ºC
Specifications Wire Diameter
0.2 mm
Specifications Wire Length
25 mm
Specifications Wire Type
Enameled Copper (Cu)
