IST MFS02 Thermal Gas Flow Sensor
IST MFS02 Thermal Gas Flow Sensor
SKU:FLO-92cb58
Enhance flow measurement accuracy with the IST MFS02 Thermal Gas Flow Sensor, featuring fast response time and precision.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
IST MFS02 Thermal Gas Flow Sensor
$99.99
Quantity: 1
Claim Your Seller Account
IST MFS02 Thermal Gas Flow Sensor
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

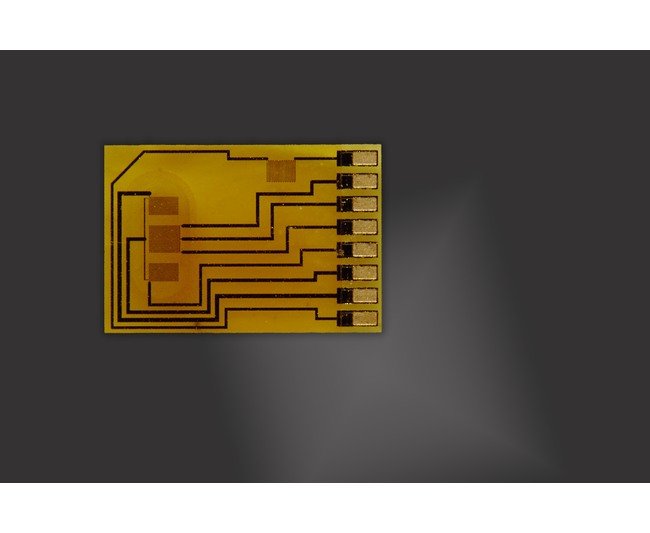

Experience precise flow measurements with the IST MFS02 Thermal Gas Flow Sensor. Utilizing MicroFlowSens technology, this sensor offers high sensitivity and rapid response time. Compliant with RoHS directives, it operates in temperatures ranging from -20 to +80 ºC. With dimensions of 5.0mm x 3.4mm x 0.5mm, and flow ranges from 0 to 150 m/s, the MFS02 excels in accuracy and efficiency, making it ideal for various applications.
Product Specifications
Dimensions Height
0.5 mm
Dimensions Length
5.0 mm
Dimensions Width
3.4 mm
Flow Range Flow Range Cta Mode
0 to 150 m/s | 0 to 10 L/min
Flow Range Flow Range Full Bridge Mode
0 to 1.5 m/s | 0 to 100 mL/min
Specifications Connection
Bonding Pads
Specifications Manufacturer Part Number
MFS02
Specifications Old Product Code
050.00263
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Substrate
Glass
Specifications Temperature Range
-20 to +80 ºC
