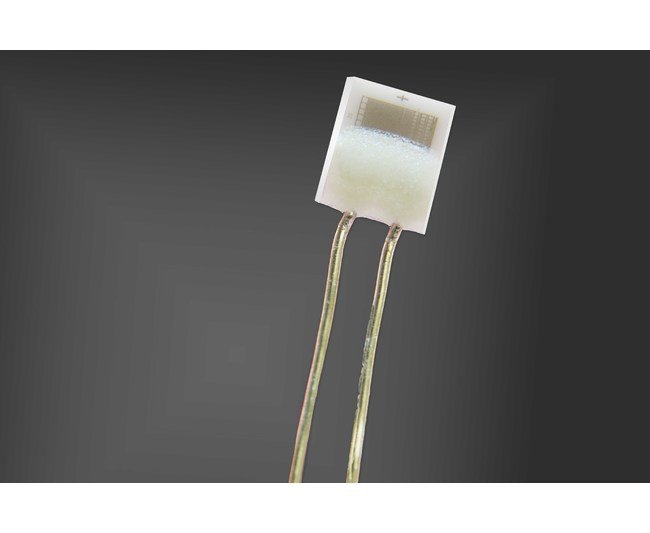

The IST MiniSens Temperature Sensor is a precision thin-film platinum RTD component designed for accurate temperature measurements. With a resistivity of 100 Ohms at 0°C and a wide temperature range from -200°C to +600°C, it ensures reliable performance in diverse environments. This sensor, compliant with RoHS standards, features a TCR of 3850 ppm/K, offering high sensitivity and stability. The small dimensions of 1.6mm x 1.2mm x 0.8mm make it ideal for compact installations. Trusted for quality and precision, this sensor from Innovative Sensor Technology's USA Division is a top choice for industrial and institutional applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Height
0.8 mm
Dimensions Length
1.6 mm
Dimensions Width
1.2 mm
Specifications Manufacturer Part Number
P0K1.161.6W.K.010
Specifications Resistivity At 0 Degree Celsius C Temperature
100 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-200 to +600 ºC
Specifications Tolerance
1/5 International Electrotechnical Commission (IEC) 60751 between -20 ºC and +120 ºC
Specifications Wire Diameter
0.2 mm
Specifications Wire Length
10 mm
Specifications Wire Type
Platinum (Pt)/Nickel (Ni)
