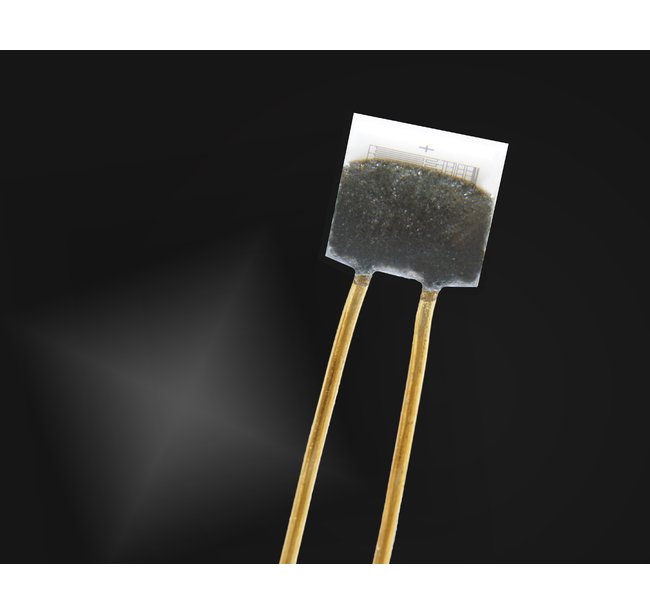

IST P0K1 100 Ohm RTD Temperature Sensor
IST P0K1 100 Ohm RTD Temperature Sensor
SKU:TEM-1d4563
High-quality IST P0K1.202.3K.B.010 Temperature Sensor with 100Ω RTD for precise temperature measurement in -200 to +300°C range. RoHS compliant, ideal for accurate readings.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
IST P0K1 100 Ohm RTD Temperature Sensor
$49.99
Quantity: 1
Claim Your Seller Account
IST P0K1 100 Ohm RTD Temperature Sensor
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The IST P0K1.202.3K.B.010 Temperature Sensor is a high-quality thin-film platinum 100 Ohm RTD component designed for precise temperature measurement. Manufactured by Innovative Sensor Technology, USA Division, this sensor is RoHS compliant and offers a resistivity of 100 Ω at 0°C. With a temperature range from -200 to +300°C, a TCR of 3850 ppm/K, and a tolerance meeting IEC 60751 F0.3 (Class B) standards, this sensor ensures accurate and reliable performance. The gold-coated nickel wire type enhances durability, and the compact dimensions of 2.0mm x 2.0mm x 1.3mm make it suitable for various applications.
Product Specifications
Dimensions Height
1.3 mm
Dimensions Length
2.0 mm
Dimensions Width
2.0 mm
Specifications Manufacturer Part Number
P0K1.202.3K.B.010
Specifications Resistivity At 0 Degree Celsius C Temperature
100 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-200 to +300 ºC
Specifications Tolerance
International Electrotechnical Commission (IEC) 60751 F0.3 (Class B)
Specifications Wire Diameter
0.2 mm
Specifications Wire Length
10 mm
Specifications Wire Type
Gold Coated Nickel (Ni)
