IST P0K1.161.6W.A.010 Platinum 100 Ohm RTD Temperature Sensor
IST P0K1.161.6W.A.010 Platinum 100 Ohm RTD Temperature Sensor
SKU:TEM-8cf8af
IST Platinum 100 Ohm RTD Temperature Sensor - High accuracy, wide temperature range, reliable performance
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
IST P0K1.161.6W.A.010 Platinum 100 Ohm RTD Temperature Sensor
$34.99
Quantity: 1
Claim Your Seller Account
IST P0K1.161.6W.A.010 Platinum 100 Ohm RTD Temperature Sensor
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

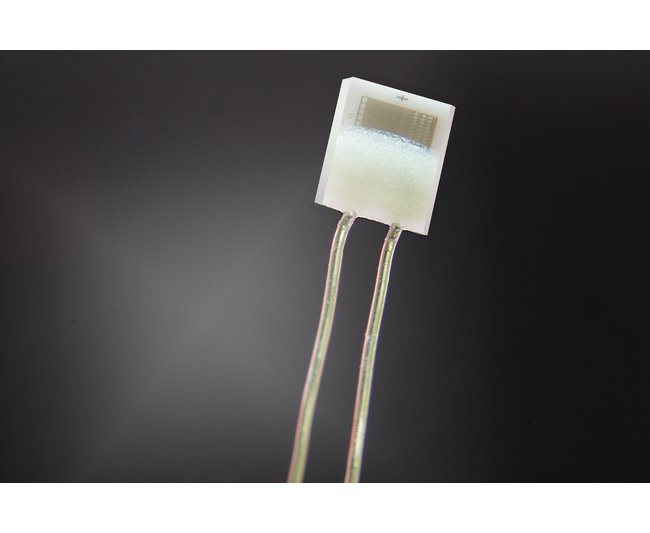

The IST P0K1.161.6W.A.010 Temperature Sensor is a high-performance component designed for precise temperature measurements in a wide range of applications. Manufactured by Innovative Sensor Technology, USA Division, this sensor boasts a resistivity of 100 Ohms at 0°C and a temperature coefficient of resistance of 3850 ppm/K. With a temperature range of -200 to +600°C and a Class A tolerance per IEC 60751 F0.15, this sensor ensures accurate and reliable temperature readings. The wire type is Platinum (Pt)/Nickel (Ni), with a 0.2mm diameter and 10mm length, making it suitable for various industrial and scientific environments.
Product Specifications
Dimensions Height
0.8 mm
Dimensions Length
1.6 mm
Dimensions Width
1.2 mm
Specifications Manufacturer Part Number
P0K1.161.6W.A.010
Specifications Resistivity At 0 Degree Celsius C Temperature
100 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-200 to +600 ºC
Specifications Tolerance
International Electrotechnical Commission (IEC) 60751 F0.15 (Class A)
Specifications Wire Diameter
0.2 mm
Specifications Wire Length
10 mm
Specifications Wire Type
Platinum (Pt)/Nickel (Ni)
