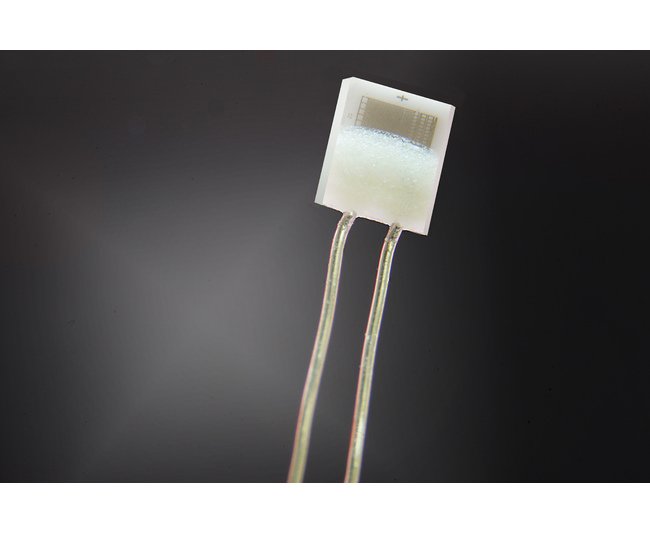

IST P0K1.161.6W.B.010 Platinum 100 Ohm RTD Temperature Sensor
IST P0K1.161.6W.B.010 Platinum 100 Ohm RTD Temperature Sensor
SKU:TEM-8b6299
IST P0K1.161.6W.B.010 Platinum 100 Ohm RTD Temperature Sensor - Premium quality, precise temperature monitoring, RoHS compliant
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
IST P0K1.161.6W.B.010 Platinum 100 Ohm RTD Temperature Sensor
$39.99
Quantity: 1
Claim Your Seller Account
IST P0K1.161.6W.B.010 Platinum 100 Ohm RTD Temperature Sensor
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The IST P0K1.161.6W.B.010 Temperature Sensor is a premium quality small thin-film platinum 100 Ohm RTD component designed for precise temperature monitoring. Manufactured by Innovative Sensor Technology, USA Division, this sensor ensures high accuracy and reliability in temperature measurement. With RoHS compliance, a resistivity of 100 Ω at 0°C, and a temperature range of -200 to +600°C, this sensor meets international standards such as IEC 60751 F0.3 (Class B). Its platinum/nickel wire construction, with a diameter of 0.2mm and length of 10mm, guarantees durability and consistent performance.
Product Specifications
Dimensions Height
0.8 mm
Dimensions Length
1.6 mm
Dimensions Width
1.2 mm
Specifications Manufacturer Part Number
P0K1.161.6W.B.010
Specifications Resistivity At 0 Degree Celsius C Temperature
100 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-200 to +600 ºC
Specifications Tolerance
International Electrotechnical Commission (IEC) 60751 F0.3 (Class B)
Specifications Wire Diameter
0.2 mm
Specifications Wire Length
10 mm
Specifications Wire Type
Platinum (Pt)/Nickel (Ni)
