IST P0K1.202.3FW.A.007 Platinum RTD Temperature Sensor
IST P0K1.202.3FW.A.007 Platinum RTD Temperature Sensor
SKU:TEM-be3341
High-precision IST Platinum RTD Temperature Sensor for -200 to +300 ºC range, 100 Ohm resistivity, RoHS-compliant
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
IST P0K1.202.3FW.A.007 Platinum RTD Temperature Sensor
$49.99
Quantity: 1
Claim Your Seller Account
IST P0K1.202.3FW.A.007 Platinum RTD Temperature Sensor
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

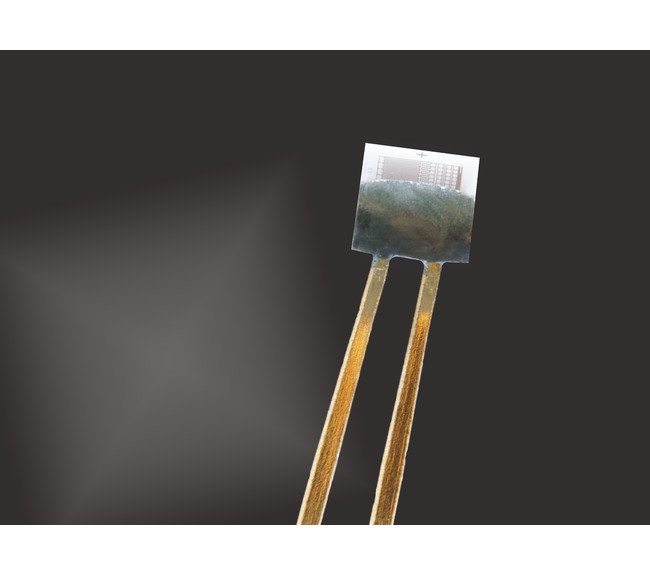

The IST P0K1.202.3FW.A.007 is a high-precision thin-film platinum RTD temperature sensor designed for exceptional accuracy in measuring temperatures ranging from -200 to +300 ºC. Manufactured by Innovative Sensor Technology, USA Division, this sensor ensures reliable performance with its 100 Ohm resistivity, 3850 ppm/K temperature coefficient of resistance, and IEC 60751 F0.15 (Class A) tolerance. The sensor features a gold-coated nickel flat wire type, precise dimensions of 2.0mm x 2.0mm x 1.3mm, and compliance with RoHS directives for environmental safety.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Height
1.3 mm
Dimensions Length
2.0 mm
Dimensions Width
2.0 mm
Specifications Manufacturer Part Number
P0K1.202.3FW.A.007
Specifications Resistivity At 0 Degree Celsius C Temperature
100 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-200 to +300 ºC
Specifications Tolerance
International Electrotechnical Commission (IEC) 60751 F0.15 (Class A)
Specifications Wire Height
0.2 mm
Specifications Wire Length
7 mm
Specifications Wire Type
Gold Coated Nickel (Ni) Flat
Specifications Wire Width
0.4 mm
