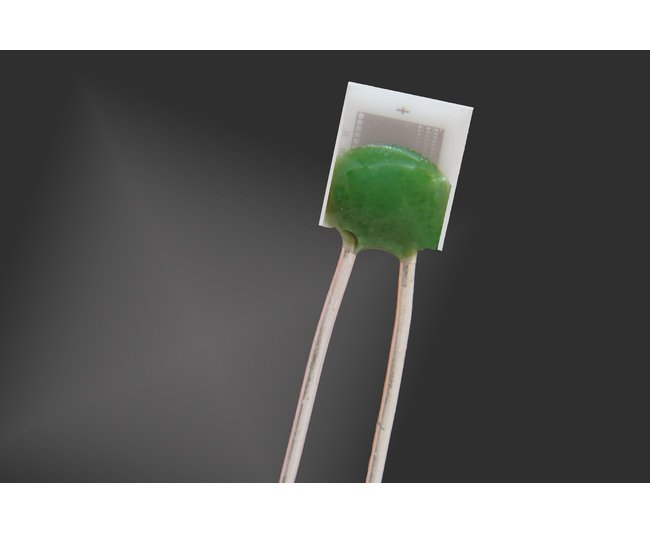

IST P0K1.232.4W.K.010 Platinum RTD Temperature Sensor
IST P0K1.232.4W.K.010 Platinum RTD Temperature Sensor
SKU:TEM-594f16
IST P0K1.232.4W.K.010 Platinum RTD Temperature Sensor - High-precision, RoHS compliant, ideal for industrial use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
IST P0K1.232.4W.K.010 Platinum RTD Temperature Sensor
$29.99
Quantity: 1
Claim Your Seller Account
IST P0K1.232.4W.K.010 Platinum RTD Temperature Sensor
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your temperature sensing applications with the IST P0K1.232.4W.K.010 Thin-film Platinum 100 Ohm RTD sensor. Manufactured by Innovative Sensor Technology, USA Division, this sensor ensures high precision with RoHS compliance. With a resistivity of 100 Ω at 0°C and a temperature range of -200 to +400°C, coupled with a silver wire type and 3850 ppm/K TCR, it offers exceptional accuracy and reliability. The sensor's compact dimensions of 2.3mm x 2.0mm x 1.3mm make it ideal for various industrial and institutional environments.
Product Specifications
Dimensions Height
1.3 mm
Dimensions Length
2.3 mm
Dimensions Width
2.0 mm
Specifications Manufacturer Part Number
P0K1.232.4W.K.010
Specifications Resistivity At 0 Degree Celsius C Temperature
100 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-200 to +400 ºC
Specifications Tolerance
1/10 International Electrotechnical Commission (IEC) 60751 between +25 ºC and +55 ºC
Specifications Wire Diameter
0.25 mm
Specifications Wire Length
10 mm
Specifications Wire Type
Silver (Ag)
