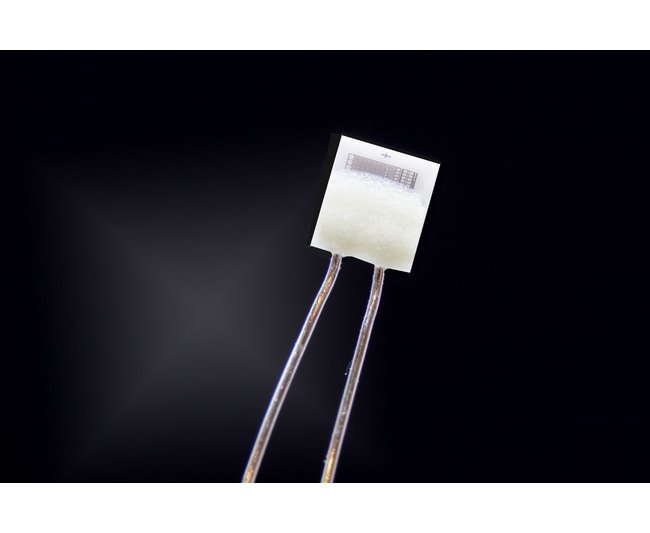

IST P0K1.232.6W.B.010 Platinum RTD Temperature Sensor
IST P0K1.232.6W.B.010 Platinum RTD Temperature Sensor
SKU:TEM-fbcd2a
IST Platinum RTD Temperature Sensor - Precision, reliability, and RoHS compliance for accurate temperature measurements.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
IST P0K1.232.6W.B.010 Platinum RTD Temperature Sensor
$29.99
Quantity: 1
Claim Your Seller Account
IST P0K1.232.6W.B.010 Platinum RTD Temperature Sensor
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The IST P0K1.232.6W.B.010 Temperature Sensor is a premium Thin-film platinum RTD component designed for precise temperature measurement. With a resistivity of 100 Ω at 0°C, a wide temperature range of -200 to +600°C, and high TCR of 3850 ppm/K, this sensor ensures accurate and reliable readings. It complies with RoHS directives, holds an IEC 60751 F0.3 (Class B) tolerance rating, and features platinum/nickel wire construction for durability and stability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Height
1.3 mm
Dimensions Length
2.3 mm
Dimensions Width
2.0 mm
Specifications Manufacturer Part Number
P0K1.232.6W.B.010
Specifications Resistivity At 0 Degree Celsius C Temperature
100 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-200 to +600 ºC
Specifications Tolerance
International Electrotechnical Commission (IEC) 60751 F0.3 (Class B)
Specifications Wire Diameter
0.2 mm
Specifications Wire Length
10 mm
Specifications Wire Type
Platinum (Pt)/Nickel (Ni)
