IST P0K1-232-6W-Y-010 Platinum RTD Temperature Sensor
IST P0K1-232-6W-Y-010 Platinum RTD Temperature Sensor
SKU:TEM-06268a
High-precision platinum RTD sensor for accurate temperature measurement, RoHS compliant, ideal for industrial applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
IST P0K1-232-6W-Y-010 Platinum RTD Temperature Sensor
$39.99
Quantity: 1
Claim Your Seller Account
IST P0K1-232-6W-Y-010 Platinum RTD Temperature Sensor
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

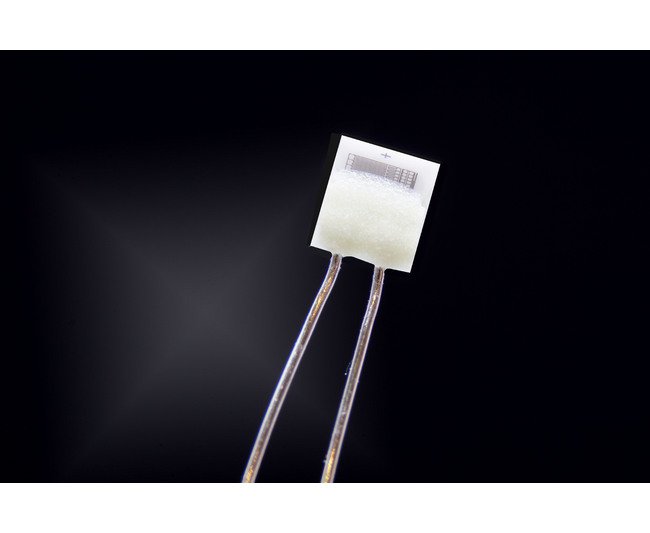

The IST P0K1-232-6W-Y-010 Temperature Sensor is a high-precision thin-film platinum RTD component designed for accurate temperature measurement in a wide range from -200 to +600 ºC. With a resistivity of 100 Ω at 0°C and a temperature coefficient of resistance of 3850 ppm/K, this sensor ensures precise and reliable temperature monitoring. It complies with RoHS standards, features a platinum/nickel wire type, and offers excellent stability and durability. The sensor's small dimensions of 2.3mm x 2.0mm x 1.3mm make it ideal for various industrial and research applications.
Product Specifications
Dimensions Height
1.3 mm
Dimensions Length
2.3 mm
Dimensions Width
2.0 mm
Specifications Manufacturer Part Number
P0K1.232.6W.Y.010
Specifications Resistivity At 0 Degree Celsius C Temperature
100 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-200 to +600 ºC
Specifications Tolerance
1/3 International Electrotechnical Commission (IEC) 60751 F0.1 (Class Y)
Specifications Wire Diameter
0.2 mm
Specifications Wire Length
10 mm
Specifications Wire Type
Platinum (Pt)/Nickel (Ni)
