IST P0K1.516.7W.B.010 Platinum RTD Temperature Sensor
IST P0K1.516.7W.B.010 Platinum RTD Temperature Sensor
SKU:TEM-7168bb
High-precision IST Platinum RTD Temperature Sensor for -200 to +750°C range, RoHS compliant, ideal for industrial use.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
IST P0K1.516.7W.B.010 Platinum RTD Temperature Sensor
$49.99
Quantity: 1
Claim Your Seller Account
IST P0K1.516.7W.B.010 Platinum RTD Temperature Sensor
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

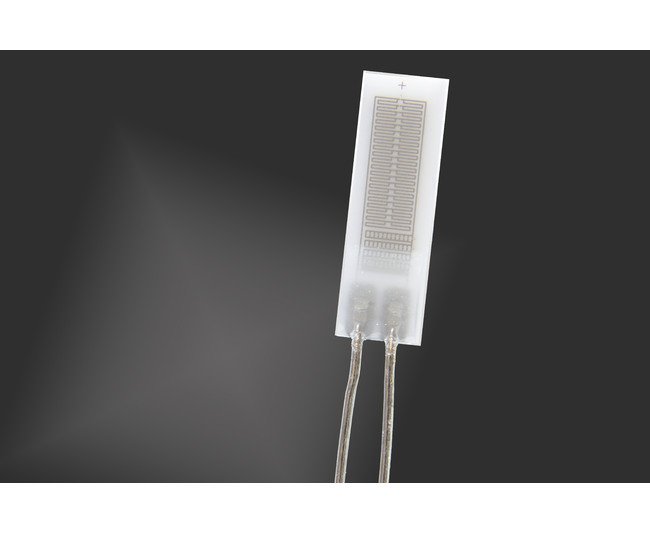

The IST P0K1.516.7W.B.010 Temperature Sensor is a premium-grade thin-film platinum RTD component designed for high-temperature applications. With a resistivity of 100 ohms at 0 degrees Celsius and a wide temperature range from -200 to +750 °C, this sensor offers exceptional accuracy and reliability. It meets RoHS compliance, IEC 60751 F0.3 Class B tolerance, and features a platinum wire type with 0.2 mm diameter and 10 mm length, ensuring superior performance in demanding environments.
Product Specifications
Dimensions Height
1.3 mm
Dimensions Length
5.0 mm
Dimensions Width
1.6 mm
Specifications Manufacturer Part Number
P0K1.516.7W.B.010
Specifications Resistivity At 0 Degree Celsius C Temperature
100 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-200 to +750 ºC
Specifications Tolerance
International Electrotechnical Commission (IEC) 60751 F0.3 (Class B)
Specifications Wire Diameter
0.2 mm
Specifications Wire Length
10 mm
Specifications Wire Type
Platinum (Pt)
