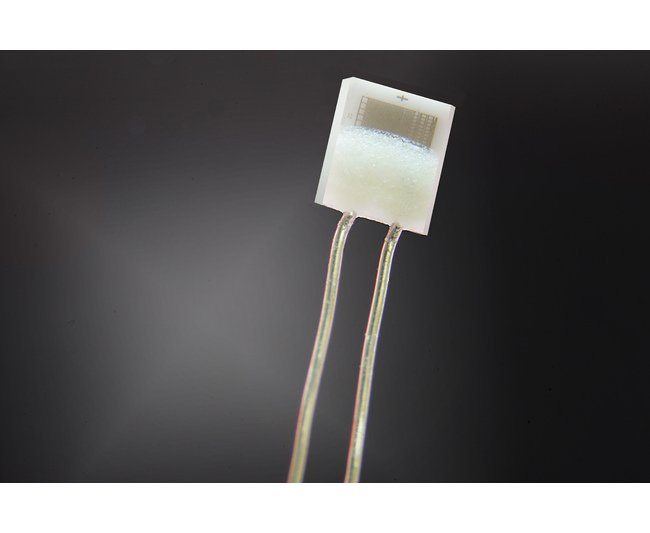

IST P1K0.161.6W.A.010 Platinum RTD Temperature Sensor
IST P1K0.161.6W.A.010 Platinum RTD Temperature Sensor
SKU:TEM-f1fd01
High-precision IST P1K0.161.6W.A.010 Temperature Sensor for accurate temperature measurement in compact designs.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
IST P1K0.161.6W.A.010 Platinum RTD Temperature Sensor
$29.99
Quantity: 1
Claim Your Seller Account
IST P1K0.161.6W.A.010 Platinum RTD Temperature Sensor
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The IST P1K0.161.6W.A.010 Temperature Sensor is a high-precision thin-film platinum RTD component designed for accurate temperature measurement in a wide range of applications. Manufactured by Innovative Sensor Technology, USA Division, this sensor boasts a resistivity of 1000 Ω at 0°C and a temperature coefficient of resistance of 3850 ppm/K. With a temperature range of -200 to +600 ºC, platinum/nickel wire construction, and IEC 60751 F0.15 (Class A) tolerance, this sensor ensures reliable and precise temperature monitoring. Its compact dimensions of 1.6mm x 1.2mm x 0.8mm make it suitable for space-constrained installations, making it an ideal choice for both consumer and institutional buyers seeking top-notch temperature sensing solutions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Height
0.8 mm
Dimensions Length
1.6 mm
Dimensions Width
1.2 mm
Specifications Manufacturer Part Number
P1K0.161.6W.A.010
Specifications Resistivity At 0 Degree Celsius C Temperature
1000 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-200 to +600 ºC
Specifications Tolerance
International Electrotechnical Commission (IEC) 60751 F0.15 (Class A)
Specifications Wire Diameter
0.2 mm
Specifications Wire Length
10 mm
Specifications Wire Type
Platinum (Pt)/Nickel (Ni)
