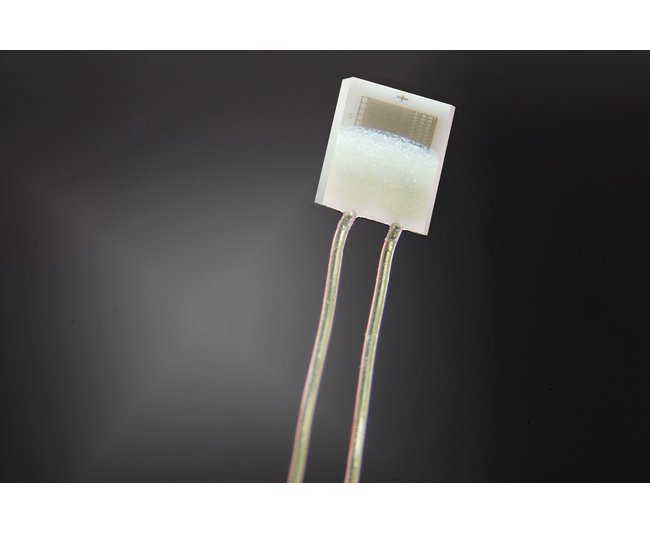

IST P1K0.161.6W.B.010 Platinum RTD Temperature Sensor
IST P1K0.161.6W.B.010 Platinum RTD Temperature Sensor
SKU:TEM-f22ca1
Accurate IST Platinum RTD Temperature Sensor for -200 to +600 ºC range, RoHS compliant, IEC 60751 F0.3 (Class B) tolerance, ideal for consumer and institutional needs.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
IST P1K0.161.6W.B.010 Platinum RTD Temperature Sensor
$49.99
Quantity: 1
Claim Your Seller Account
IST P1K0.161.6W.B.010 Platinum RTD Temperature Sensor
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The IST P1K0.161.6W.B.010 Temperature Sensor is a top-of-the-line small and thin-film platinum RTD component, designed for precise temperature measurement in a wide range from -200 to +600 ºC. With a resistivity of 1000 Ω and a superior temperature coefficient of resistance at 3850 ppm/K, this sensor guarantees accurate readings. It complies with the Restriction of Hazardous Substances Directive (RoHS), adheres to IEC 60751 F0.3 (Class B) tolerance standards, and features platinum/nickel wire construction of 0.2 mm diameter and 10 mm length, making it a reliable choice for both consumer and institutional applications.
Product Specifications
Dimensions Height
0.8 mm
Dimensions Length
1.6 mm
Dimensions Width
1.2 mm
Specifications Manufacturer Part Number
P1K0.161.6W.B.010
Specifications Resistivity At 0 Degree Celsius C Temperature
1000 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-200 to +600 ºC
Specifications Tolerance
International Electrotechnical Commission (IEC) 60751 F0.3 (Class B)
Specifications Wire Diameter
0.2 mm
Specifications Wire Length
10 mm
Specifications Wire Type
Platinum (Pt)/Nickel (Ni)
