IST P1K0.161.6W.Y.010 Platinum RTD Temperature Sensor
IST P1K0.161.6W.Y.010 Platinum RTD Temperature Sensor
SKU:TEM-503d86
IST P1K0.161.6W.Y.010 Platinum RTD Sensor - High-precision temperature measurement from -200 to +600 ºC. RoHS compliant, ideal for industrial & scientific use.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
IST P1K0.161.6W.Y.010 Platinum RTD Temperature Sensor
$49.99
Quantity: 1
Claim Your Seller Account
IST P1K0.161.6W.Y.010 Platinum RTD Temperature Sensor
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

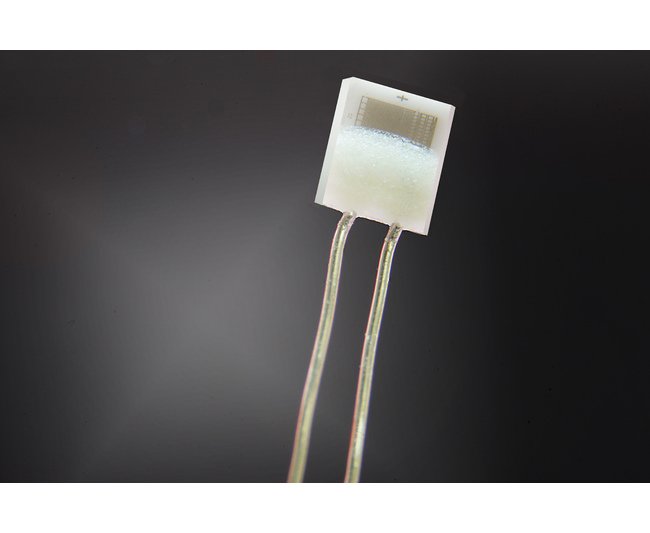

The IST P1K0.161.6W.Y.010 Temperature Sensor is a high-precision miniaturized thin-film platinum RTD component designed for accurate temperature measurement in a wide range from -200 to +600 ºC. Manufactured by Innovative Sensor Technology, USA Division, this sensor guarantees superior performance with a resistivity of 1000 Ω and a temperature coefficient of resistance (TCR) of 3850 ppm/K. With RoHS compliance and precise dimensions, this temperature sensor is ideal for industrial, scientific, and research applications.
Product Specifications
Dimensions Height
0.8 mm
Dimensions Length
1.6 mm
Dimensions Width
1.2 mm
Specifications Manufacturer Part Number
P1K0.161.6W.Y.010
Specifications Resistivity At 0 Degree Celsius C Temperature
1000 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-200 to +600 ºC
Specifications Tolerance
1/3 International Electrotechnical Commission (IEC) 60751 F0.1 (Class Y)
Specifications Wire Diameter
0.2 mm
Specifications Wire Length
10 mm
Specifications Wire Type
Platinum (Pt)/Nickel (Ni)
