IST Platinum 100 Ohm Temperature Sensor P0K1.1206.2P.A
IST Platinum 100 Ohm Temperature Sensor P0K1.1206.2P.A
SKU:TEM-419867
IST Platinum 100 Ohm Temperature Sensor for precise temperature monitoring in a compact design. RoHS compliant with wide -50 to +150 ºC range.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
IST Platinum 100 Ohm Temperature Sensor P0K1.1206.2P.A
$29.99
Quantity: 1
Claim Your Seller Account
IST Platinum 100 Ohm Temperature Sensor P0K1.1206.2P.A
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

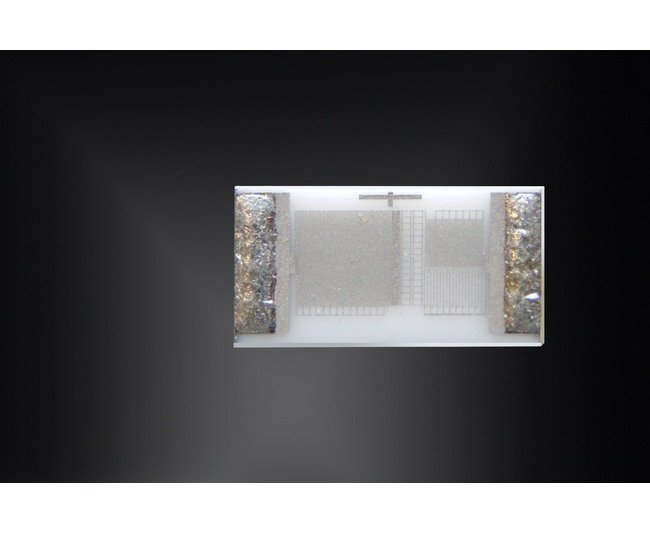

The IST Platinum 100 Ohm Temperature Sensor P0K1.1206.2P.A is a cutting-edge surface-mount component offering precise temperature sensing. Manufactured by Innovative Sensor Technology, USA Division, this sensor boasts RoHS compliance, a resistivity of 100 Ω at 0°C, and a temperature coefficient of resistance of 3850 ppm/K. With a wide temperature range of -50 to +150 ºC, IEC 60751 F0.15 tolerance, and tin-plated contacts, this sensor ensures accurate readings in various environments. Measuring 3.0mm x 1.6mm x 0.4mm, it is ideal for applications requiring reliable temperature monitoring.
Product Specifications
Dimensions Height
0.4 mm
Dimensions Length
3.0 mm
Dimensions Width
1.6 mm
Specifications Manufacturer Part Number
P0K1.1206.2P.A
Specifications Old Product Code
010.01131
Specifications Resistivity At 0 Degree Celsius C Temperature
100 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Soldering Connection
Tin Plated Contacts (96.5% Sn, 3% Ag, 0.5% Cu)
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-50 to +150 ºC
Specifications Tolerance
International Electrotechnical Commission (IEC) 60751 F0.15 (IST AG Reference Class A)
Specifications Type
1206
