IST Platinum RTD Temperature Sensor - P1K0.232.6W.A.010
IST Platinum RTD Temperature Sensor - P1K0.232.6W.A.010
SKU:TEM-1f5666
High-precision IST Platinum RTD Temperature Sensor for wide temperature range. RoHS compliant with excellent resistivity. Ideal for institutional and industrial use.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
IST Platinum RTD Temperature Sensor - P1K0.232.6W.A.010
$49.99
Quantity: 1
Claim Your Seller Account
IST Platinum RTD Temperature Sensor - P1K0.232.6W.A.010
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

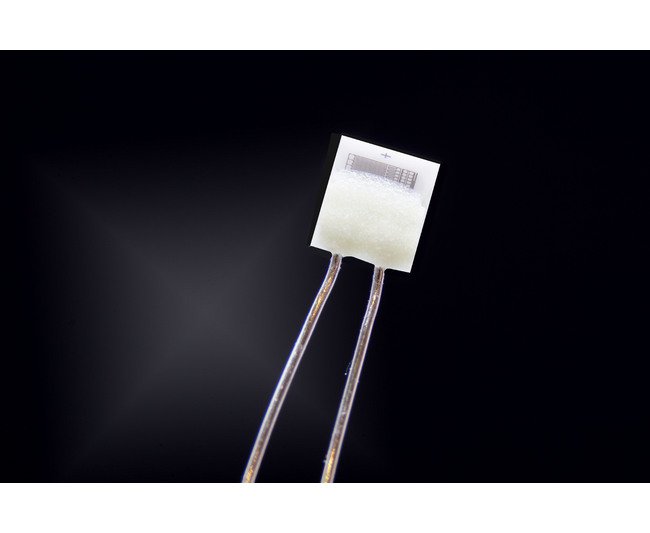

The IST Platinum RTD Temperature Sensor, model P1K0.232.6W.A.010, is a high-precision thin-film platinum RTD component suitable for a wide temperature range of -200 to +600 ºC. Manufactured by Innovative Sensor Technology, USA Division, this sensor boasts excellent resistivity at 0 ºC with a value of 1000 Ω and a Temperature Coefficient of Resistance (TCR) of 3850 ppm/K. It meets the RoHS compliance, IEC 60751 F0.15 (Class A) tolerance, and features a durable Platinum/Nickel wire type. With compact dimensions of 2.3mm x 2.0mm x 1.3mm, this sensor offers precise temperature measurement in institutional and industrial applications.
Product Specifications
Dimensions Height
1.3 mm
Dimensions Length
2.3 mm
Dimensions Width
2.0 mm
Specifications Manufacturer Part Number
P1K0.232.6W.A.010
Specifications Resistivity At 0 Degree Celsius C Temperature
1000 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-200 to +600 ºC
Specifications Tolerance
International Electrotechnical Commission (IEC) 60751 F0.15 (Class A)
Specifications Wire Diameter
0.2 mm
Specifications Wire Length
10 mm
Specifications Wire Type
Platinum (Pt)/Nickel (Ni)
