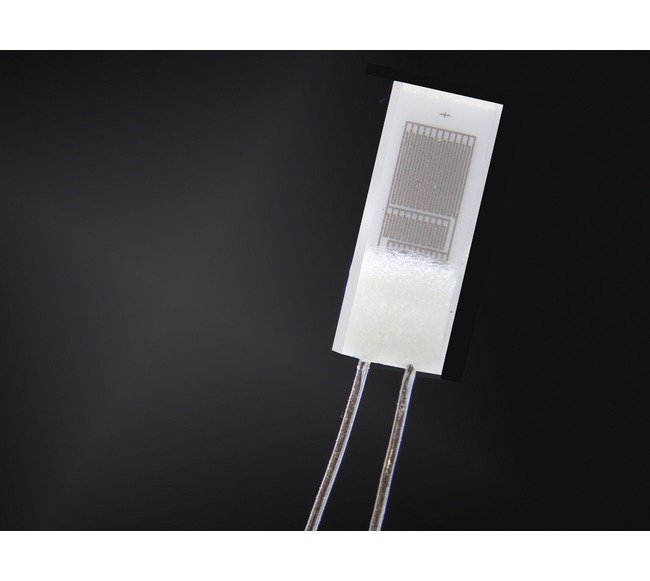

IST Platinum Thin-Film Temperature Sensor P0K1.520.6W.A.010
IST Platinum Thin-Film Temperature Sensor P0K1.520.6W.A.010
SKU:TEM-6a158d
Highly accurate IST Platinum Thin-Film Temperature Sensor for -200 to +600 ºC range with 100 Ω resistivity, ideal for precise temperature measurements.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
IST Platinum Thin-Film Temperature Sensor P0K1.520.6W.A.010
$49.99
Quantity: 1
Claim Your Seller Account
IST Platinum Thin-Film Temperature Sensor P0K1.520.6W.A.010
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The IST Platinum Thin-Film Temperature Sensor P0K1.520.6W.A.010 is a high-precision RTD component that ensures accurate temperature measurements in a wide range from -200 to +600 ºC. Featuring a 100 Ω resistivity at 0 ºC, 3850 ppm/K Temperature Coefficient of Resistance, and IEC 60751 F0.15 (Class A) Tolerance, this sensor guarantees reliable performance. With a platinum/nickel wire type, 0.2 mm diameter, and RoHS compliance, it meets stringent industry standards for quality and safety. Its compact dimensions of 5.0mm x 2.0mm x 1.3mm make it ideal for various applications demanding precise temperature monitoring.
Product Specifications
Dimensions Height
1.3 mm
Dimensions Length
5.0 mm
Dimensions Width
2.0 mm
Specifications Manufacturer Part Number
P0K1.520.6W.A.010
Specifications Resistivity At 0 Degree Celsius C Temperature
100 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-200 to +600 ºC
Specifications Tolerance
International Electrotechnical Commission (IEC) 60751 F0.15 (Class A)
Specifications Wire Diameter
0.2 mm
Specifications Wire Length
10 mm
Specifications Wire Type
Platinum (Pt)/Nickel (Ni)
