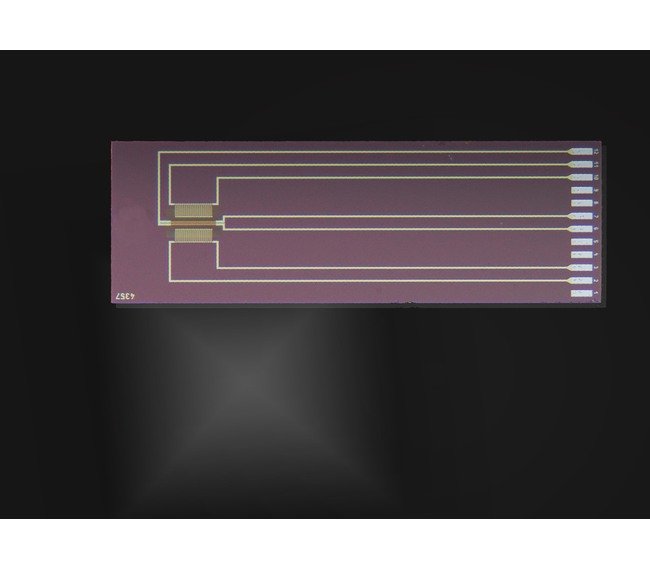

IST SFS01 Silicon Flow Sensor
IST SFS01 Silicon Flow Sensor
SKU:FLO-5bb644
Accurate Silicon Flow Sensor for fast gas flow measurement, RoHS compliant, ideal for industrial applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
IST SFS01 Silicon Flow Sensor
$49.99
Quantity: 1
Claim Your Seller Account
IST SFS01 Silicon Flow Sensor
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The IST SFS01 Silicon Flow Sensor is designed for precise gas flow measurement and direction detection, utilizing a calorimetric measuring principle for accurate results. With a flow range of 0 to 3.5 m/s, this sensor offers rapid response times and high sensitivity. Manufactured by Innovative Sensor Technology, USA Division, this sensor is RoHS compliant and operates in a temperature range of 0 to +80 ºC. The compact dimensions (6.00mm x 2.0mm x 0.525mm) make it suitable for various industrial applications, ensuring reliable and efficient performance.
Product Specifications
Dimensions Height
0.525 mm
Dimensions Height Tolerance
0.01 mm
Dimensions Length
6.00 mm
Dimensions Length Tolerance
0.05 mm
Dimensions Width
2.0 mm
Dimensions Width Tolerance
0.02 mm
Specifications Connection
Bonding Pads (Recommended Bonding Process: Wedge-Wedge with Aluminum Wires)
Specifications Flow Range
0 to 3.5 m/s
Specifications Manufacturer Part Number
SFS01
Specifications Old Product Code
350.00312
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Storage Temperature Range
-20 to +80 ºC
Specifications Substrate
Silicone
Specifications Temperature Range
0 to +80 ºC
