IST USA Division Temperature Sensor P0K1.281.6W.B.007.R
IST USA Division Temperature Sensor P0K1.281.6W.B.007.R
SKU:TEM-a473fb
IST USA Division high-precision temperature sensor for -200 to +600°C range, IEC 60751 Class B tolerance, platinum/nickel wire
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
IST USA Division Temperature Sensor P0K1.281.6W.B.007.R
$49.99
Quantity: 1
Claim Your Seller Account
IST USA Division Temperature Sensor P0K1.281.6W.B.007.R
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

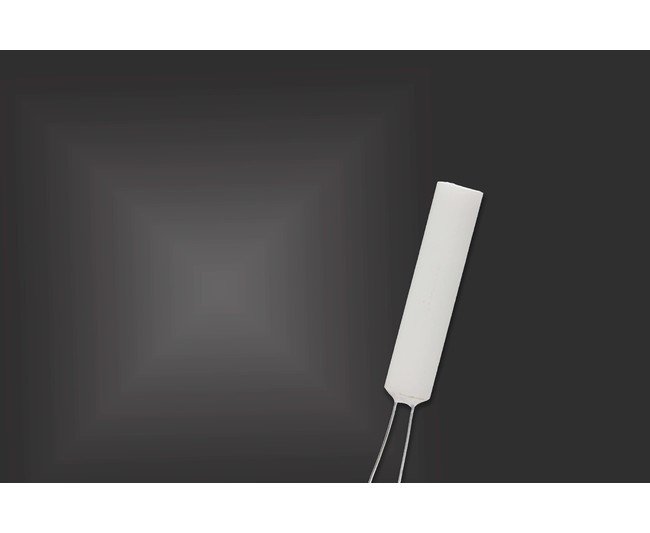

The IST USA Division Temperature Sensor P0K1.281.6W.B.007.R is a high-precision sensor designed for extreme temperature monitoring. With a resistivity of 100 Ω at 0°C and a Temperature Coefficient of Resistance (TCR) of 3850 ppm/K, this sensor offers accurate readings in a wide temperature range from -200 to +600°C. Compliant with International Electrotechnical Commission (IEC) 60751 F0.3 (Class B) for tolerances, this sensor features a durable platinum (Pt)/nickel (Ni) wire in a 2.8mm round housing. Ideal for industrial and research applications.
Product Specifications
Specifications Approximate Wire Diameter
0.2 mm
Specifications Housing
In Round
Specifications Housing Diameter
2.8 mm
Specifications Housing Length
13 mm
Specifications Manufacturer Part Number
P0K1.281.6W.B.007.R
Specifications Resistivity At 0 Degree Celsius C Temperature
100 Ω
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-200 to +600 ºC
Specifications Tolerance
International Electrotechnical Commission (IEC) 60751 F0.3 (Class B)
Specifications Wire Length
7 mm
Specifications Wire Type
Platinum (Pt)/Nickel (Ni)
