IST USA Division Temperature Sensor RPT0K1.625.2K.A.385-4.H
IST USA Division Temperature Sensor RPT0K1.625.2K.A.385-4.H
SKU:TEM-7e40de
IST USA Division Temperature Sensor - Premium quality, RoHS compliant, accurate temperature sensing from -50 to +200 ºC.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
IST USA Division Temperature Sensor RPT0K1.625.2K.A.385-4.H
$45.99
Quantity: 1
Claim Your Seller Account
IST USA Division Temperature Sensor RPT0K1.625.2K.A.385-4.H
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

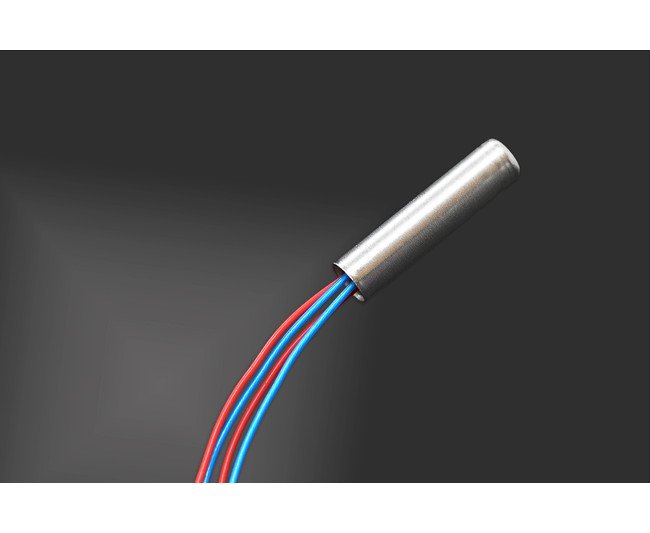

The IST USA Division Temperature Sensor, model RPT0K1.625.2K.A.385-4.H, is a premium sensor designed for precise temperature measurement in a wide range from -50 to +200 ºC. This sensor boasts RoHS compliance, a resistivity of 100 Ω at 0ºC, and a temperature coefficient of resistance at 3850 ppm/K. Encased in a durable stainless steel housing with 4 wires (2 red, 2 white) featuring copper/silver stranded wire type, this sensor ensures accurate readings for your applications. Meeting IEC 60751 F0.15 standards, this sensor is reliable and efficient for various temperature monitoring needs.
Product Specifications
Specifications Housing
In Round Stainless Steel
Specifications Housing Diameter
6.0 mm
Specifications Housing Length
25 mm
Specifications Manufacturer Part Number
RPT0K1.625.2K.A.385-4.H
Specifications Number Of Wires
4 - 2 Red, 2 White
Specifications Old Product Code
010.03592
Specifications Resistivity At 0 Degree Celsius C Temperature
100 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-50 to +200 ºC
Specifications Tolerance
International Electrotechnical Commission (IEC) 60751 F0.15 (IST AG Reference Class A)
Specifications Wire Insulation
Polytetrafluoroethylene (PTFE)
Specifications Wire Length
385 mm
Specifications Wire Size
28/7 AWG
Specifications Wire Type
Copper (Cu)/Silver (Ag) Stranded
