IST USA P0K1.161.1E.B.200 Platinum RTD Temperature Sensor
IST USA P0K1.161.1E.B.200 Platinum RTD Temperature Sensor
SKU:TEM-18b336
IST USA P0K1.161.1E.B.200 Platinum RTD Temp Sensor: High-precision, compact design, RoHS compliant. Ideal for -50 to +150 ºC range.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
IST USA P0K1.161.1E.B.200 Platinum RTD Temperature Sensor
$29.99
Quantity: 1
Claim Your Seller Account
IST USA P0K1.161.1E.B.200 Platinum RTD Temperature Sensor
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

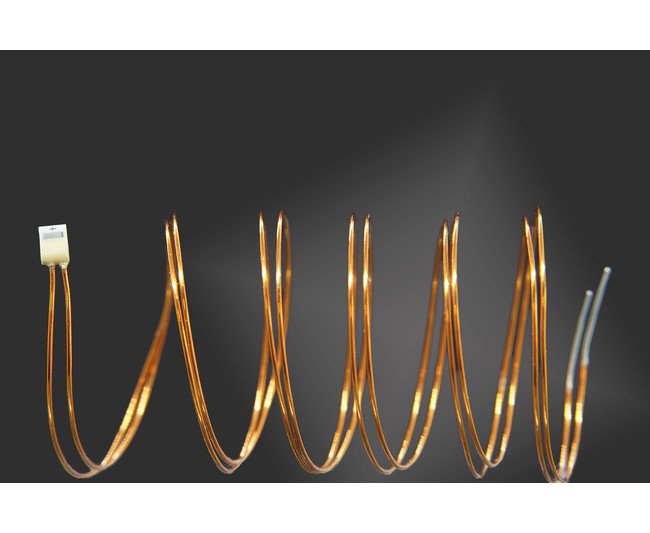

The IST USA P0K1.161.1E.B.200 Temperature Sensor is a high-precision miniaturized thin-film platinum RTD component designed for accurate temperature measurement in a range from -50 to +150 ºC. Manufactured by Innovative Sensor Technology, this sensor boasts RoHS compliance, 100 Ω resistivity at 0 ºC, a TCR of 3850 ppm/K, and meets IEC 60751 F0.3 (Class B) tolerance standards. With a compact size of 1.6mm x 1.2mm x 0.8mm and featuring enameled copper wire of 0.2mm diameter and 200mm length, this sensor ensures reliable temperature monitoring in various applications.
Product Specifications
Dimensions Height
0.8 mm
Dimensions Length
1.6 mm
Dimensions Width
1.2 mm
Specifications Manufacturer Part Number
P0K1.161.1E.B.200
Specifications Old Product Code
010.00707
Specifications Resistivity At 0 Degree Celsius C Temperature
100 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-50 to +150 ºC
Specifications Tolerance
International Electrotechnical Commission (IEC) 60751 F0.3 (Class B)
Specifications Wire Diameter
0.2 mm
Specifications Wire Length
200 mm
Specifications Wire Type
Enameled Copper (Cu)
