IST USA P0K1.202.3FW.B.007 Platinum RTD Temperature Sensor
IST USA P0K1.202.3FW.B.007 Platinum RTD Temperature Sensor
SKU:TEM-e75eba
Explore the IST USA P0K1.202.3FW.B.007 Platinum RTD Temperature Sensor for precise, RoHS-compliant temperature measurement in a wide range of industrial environments.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
IST USA P0K1.202.3FW.B.007 Platinum RTD Temperature Sensor
$29.99
Quantity: 1
Claim Your Seller Account
IST USA P0K1.202.3FW.B.007 Platinum RTD Temperature Sensor
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

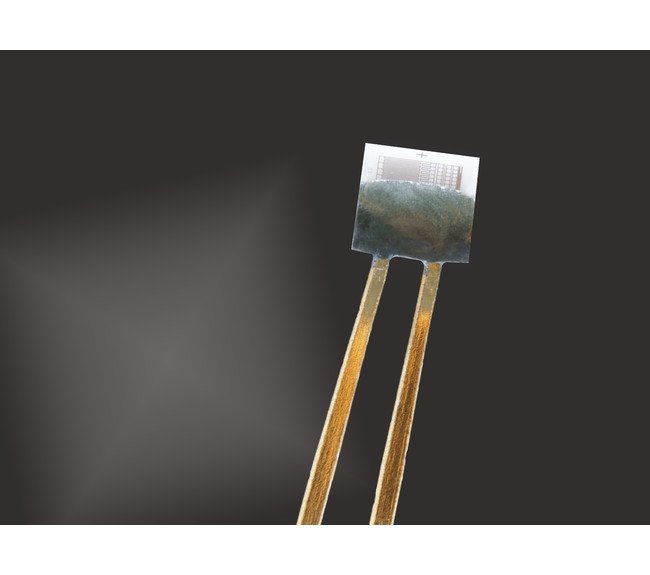

The IST USA P0K1.202.3FW.B.007 Temperature Sensor is a cutting-edge thin-film platinum 100 Ohm RTD component. Manufactured by Innovative Sensor Technology, USA Division, this sensor offers precise temperature measurement with a resistivity of 100 Ω at 0°C. It complies with RoHS standards, featuring a Temperature Coefficient of Resistance of 3850 ppm/K, Class B tolerance per IEC 60751, and operates within a wide temperature range of -200 to +300°C. With a gold-coated nickel wire and compact dimensions of 2.0x2.0x1.3 mm, this sensor guarantees accuracy and reliability in diverse applications.
Product Specifications
Dimensions Height
1.3 mm
Dimensions Length
2.0 mm
Dimensions Width
2.0 mm
Specifications Manufacturer Part Number
P0K1.202.3FW.B.007
Specifications Resistivity At 0 Degree Celsius C Temperature
100 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-200 to +300 ºC
Specifications Tolerance
International Electrotechnical Commission (IEC) 60751 F0.3 (Class B)
Specifications Wire Height
0.2 mm
Specifications Wire Length
7 mm
Specifications Wire Type
Gold Coated Nickel (Ni) Flat
Specifications Wire Width
0.4 mm
