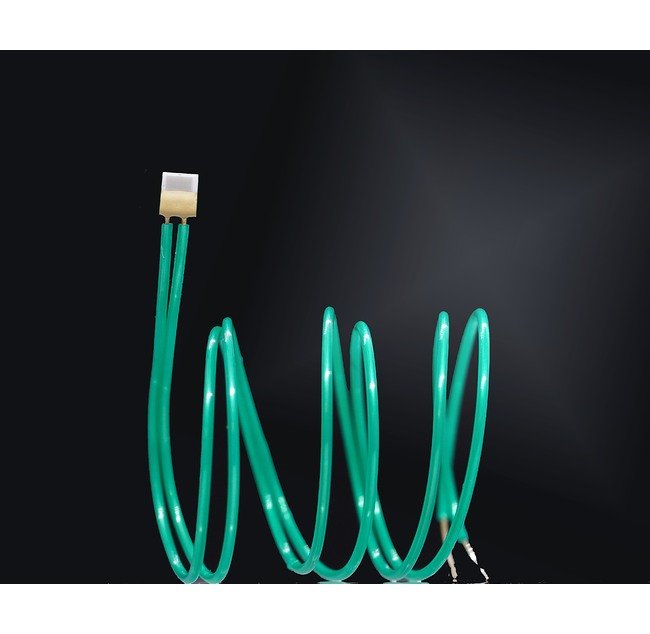

IST USA P0K1.232.2I.B.050 Temperature Sensor
IST USA P0K1.232.2I.B.050 Temperature Sensor
SKU:TEM-5c34dc
Enhance temperature sensing precision with the IST USA Temperature Sensor - RoHS compliant with a wide -50 to +200°C range for accurate readings.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
IST USA P0K1.232.2I.B.050 Temperature Sensor
$29.99
Quantity: 1
Claim Your Seller Account
IST USA P0K1.232.2I.B.050 Temperature Sensor
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your temperature sensing capabilities with the IST USA P0K1.232.2I.B.050 Temperature Sensor. This sensor, compliant with RoHS regulations, features a resistivity of 100 Ω at 0°C, TCR of 3850 ppm/K, and an IEC 60751 F0.3 (Class B) tolerance. With a wide temperature range of -50 to +200°C and high-quality Copper/Silver wiring insulated with PTFE, this sensor ensures precise and reliable temperature measurements in challenging environments.
Product Specifications
Dimensions Height
1.3 mm
Dimensions Length
2.3 mm
Dimensions Width
2.0 mm
Specifications Manufacturer Part Number
P0K1.232.2I.B.050
Specifications Resistivity At 0 Degree Celsius C Temperature
100 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-50 to +200 ºC
Specifications Tolerance
International Electrotechnical Commission (IEC) 60751 F0.3 (Class B)
Specifications Wire Insulation
Polytetrafluoroethylene (PTFE)
Specifications Wire Length
50 mm
Specifications Wire Size
30 AWG
Specifications Wire Type
Copper (Cu)/Silver (Ag)
