IST USA P1K0.1206.2P.B Platinum RTD Temperature Sensor
IST USA P1K0.1206.2P.B Platinum RTD Temperature Sensor
SKU:TEM-cff2e3
IST USA P1K0.1206.2P.B Platinum RTD Sensor - High-precision, RoHS compliant, ideal for -50 to +150 ºC range
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
IST USA P1K0.1206.2P.B Platinum RTD Temperature Sensor
$29.99
Quantity: 1
Claim Your Seller Account
IST USA P1K0.1206.2P.B Platinum RTD Temperature Sensor
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

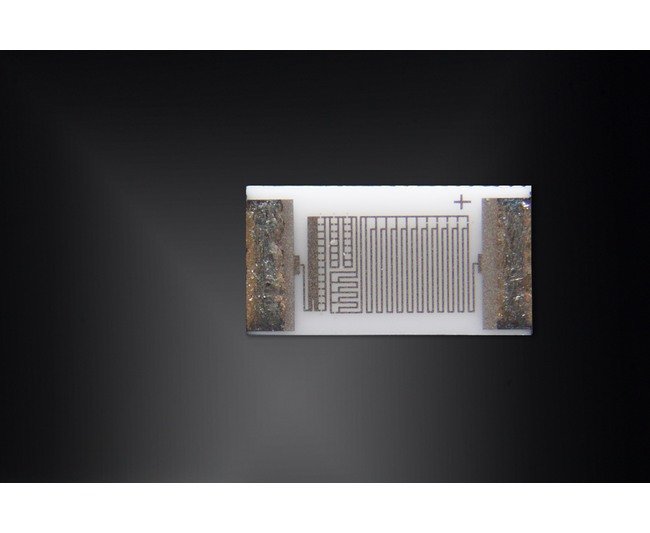

The IST USA P1K0.1206.2P.B is a high-quality SMD platinum 1000 Ohm RTD temperature sensor designed for precise temperature measurement in a range of -50 to +150 ºC. Manufactured by Innovative Sensor Technology, USA Division, this sensor ensures accurate readings with a resistance of 1000 Ω and a temperature coefficient of resistance (TCR) of 3850 ppm/K. Its RoHS compliance guarantees environmental safety, while adherence to IEC standards for tolerance ensures reliability. With tin-plated contacts for soldering and compact dimensions of 3.0mm x 1.6mm x 0.4mm, this sensor is ideal for various consumer and institutional applications.
Product Specifications
Dimensions Height
0.4 mm
Dimensions Length
3.0 mm
Dimensions Width
1.6 mm
Specifications Manufacturer Part Number
P1K0.1206.2P.B
Specifications Old Product Code
010.01135
Specifications Resistivity At 0 Degree Celsius C Temperature
1000 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Soldering Connection
Tin Plated Contacts (96.5% Sn, 3% Ag, 0.5% Cu)
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-50 to +150 ºC
Specifications Tolerance
International Electrotechnical Commission (IEC) 60751 F0.3 (IST AG Reference Class B)
Specifications Type
1206
