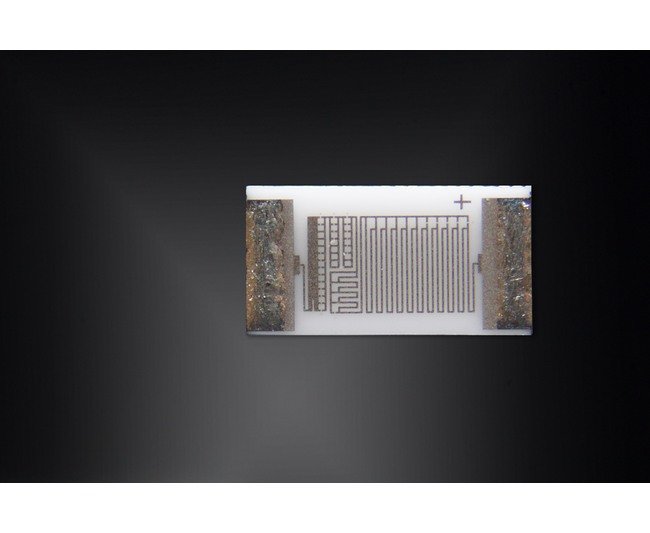

ISTAG Platinum RTD Temperature Sensor, P1K0.0805.2P.A
ISTAG Platinum RTD Temperature Sensor, P1K0.0805.2P.A
SKU:TEM-cfe8ee
Get accurate temperature readings with ISTAG Platinum RTD Sensor, ideal for diverse applications. RoHS compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
ISTAG Platinum RTD Temperature Sensor, P1K0.0805.2P.A
$24.99
Quantity: 1
Claim Your Seller Account
ISTAG Platinum RTD Temperature Sensor, P1K0.0805.2P.A
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience precise temperature sensing with the ISTAG Platinum RTD Temperature Sensor, P1K0.0805.2P.A. This SMD component features a resistivity of 1000 Ω at 0°C, a temperature range of -50 to +150°C, and lead-free tin-plated contacts for reliable soldering. With compliance to RoHS directives and IEC standards, this sensor ensures accuracy and safety in various applications.
Product Specifications
Dimensions Height
0.4 mm
Dimensions Length
2.0 mm
Dimensions Width
1.2 mm
Specifications Manufacturer Part Number
P1K0.0805.2P.A
Specifications Old Product Code
010.01157
Specifications Resistivity At 0 Degree Celsius C Temperature
1000 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Soldering Connection
Lead-free Tin Plated Contacts (96.5% Sn, 3% Ag, 0.5% Cu)
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-50 to +150 ºC
Specifications Tolerance
International Electrotechnical Commission (IEC) 60751 F0.15 (IST AG Reference Class A)
Specifications Type
0805
