JCC 3.6mm Right Angle High Current Wire Terminal Socket Pin
JCC 3.6mm Right Angle High Current Wire Terminal Socket Pin
SKU:HIG-3df78e
High-current socket pin with 3.6mm plug diameter, durable materials, and reliable performance for tight spaces.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
JCC 3.6mm Right Angle High Current Wire Terminal Socket Pin
$29.99
Quantity: 1
Claim Your Seller Account
JCC 3.6mm Right Angle High Current Wire Terminal Socket Pin
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

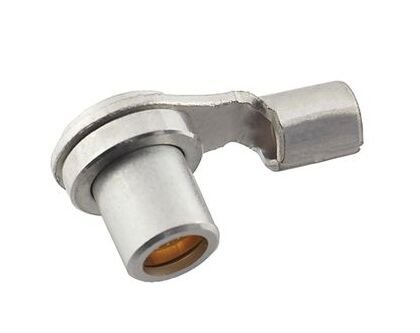

The JCC 3.6mm Right Angle High Current Wire Terminal Socket Pin is designed for easy attachment and detachment, featuring a high-reliability beryllium copper louver. With an acceptable plug diameter of 3.6mm, this socket pin offers maximum contact resistance of 15mΩ and a durable construction suitable for temperatures ranging from -40 to 150 ºC. The brass and copper alloy materials used ensure longevity and reliability in high current and high voltage applications. Ideal for installations in tight spaces, this socket pin provides secure connections and efficient performance.
Product Specifications
Materials Crimp Terminal
Copper Alloy, Sn plating over Ni (R3.5-6)
Materials Louver
Copper Alloy, Au plating over Ni
Materials Plug
Brass, Au plating over Ni
Materials Ring
Brass, Sn plating over Ni
Materials Sleeve
Brass, Tin (Sn) Plating Over Nickel (Ni)
Note
Be mindful of the wire's heat resistance.Insert and remove the socket perpendicularly to the plug.If the wire moves easily after insertion, ensure it is securely fastened to prevent displacement.
Specifications Acceptable Plug Diameter
3.6 mm | 0.142 in
Specifications Durability
5,000 cycles
Specifications Maximum Contact Resistance
15 mΩ
Specifications Maximum Current Rating A At 25 Degree Celsius C T
34 A
Specifications Maximum Insertion Force
10 N
Specifications Solid Wire
1.82 to 2.4 mm²
Specifications Strand Wire
2.63 to 4.6 mm²
Specifications Temperature Range
-40 to 150 ºC
Specifications Thickness
12 AWG
