JCC 3-Pin Heat Resistant Laser Diode Socket
JCC 3-Pin Heat Resistant Laser Diode Socket
SKU:SOC-7c5a5a
Experience superior heat resistance and durability with the JCC 3-Pin Laser Diode Socket, designed for precision and reliability.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
JCC 3-Pin Heat Resistant Laser Diode Socket
$24.99
Quantity: 1
Claim Your Seller Account
JCC 3-Pin Heat Resistant Laser Diode Socket
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

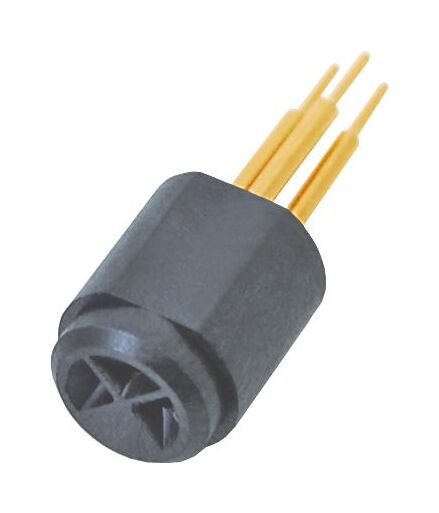

The JCC 3-Pin Heat Resistant Laser Diode Socket is a high-quality, custom-designed socket specifically engineered for laser diodes. Featuring high heat resistance up to 220ºC, this socket ensures optimal performance in demanding applications. With durable copper alloy construction and gold plating over nickel, it offers superior conductivity and reliability. The socket complies with strict industry standards for insulation resistance, contact resistance, and AC dielectric strength, making it ideal for both consumer and institutional buyers seeking precision and longevity in their electronic components.
Product Specifications

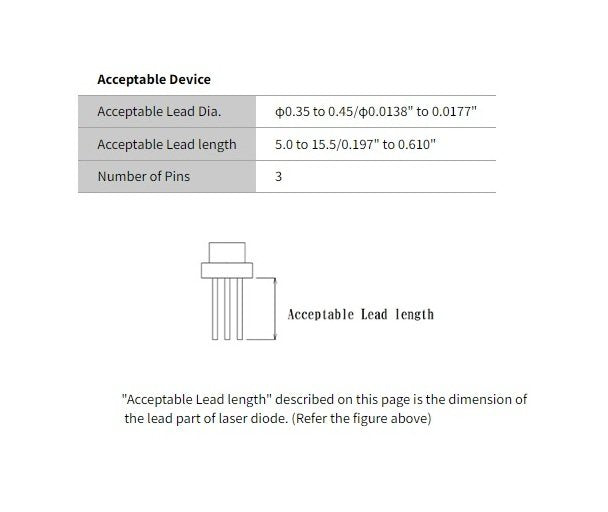

Acceptable Device Acceptable Lead Diameter
0.35 to 0.45 mm | 0.0138 to 0.0177 in
Acceptable Device Acceptable Lead Length
5.0 to 15.5 mm | 0.197 to 0.610 in
Acceptable Device Number Of Pins
3
Features
High temperature (max 220 ºC)High durability (max insertion/removal 10,000 times)Special shapeSpecial number of pins, pin arrangement, pitch circleElectro-Static Discharge (ESD)
Materials Contact Material
Copper Alloy, Gold (Au) Plating Over Nickel (Ni)
Materials Insulator Material
High Temperature Thermoplastic
Materials Sleeve Material
Copper Alloy, Gold (Au) Plating Over Nickel (Ni)
Specifications Alternating Current Ac Dielectric Strength 1 Minu
500 Vrms
Specifications Current Rating
2.0 A
Specifications Maximum Contact Resistance
15 MΩ
Specifications Maximum High Current
6 A
Specifications Minimum Insulation Resistance At 300 Volt V Direc
500 MΩ
Specifications Operating Temperature
-45 to 220 ºC

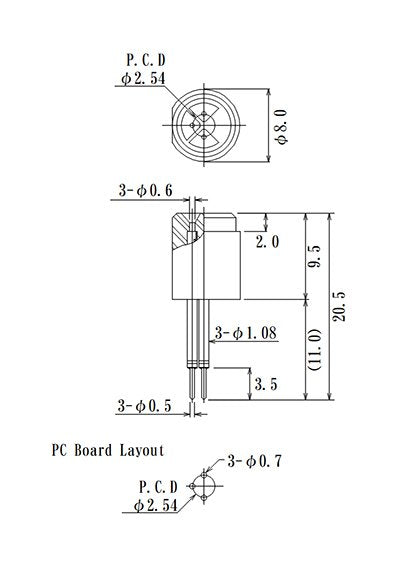

Specifications Pitch Circle Diameter
2.54 mm | 0.100 in
