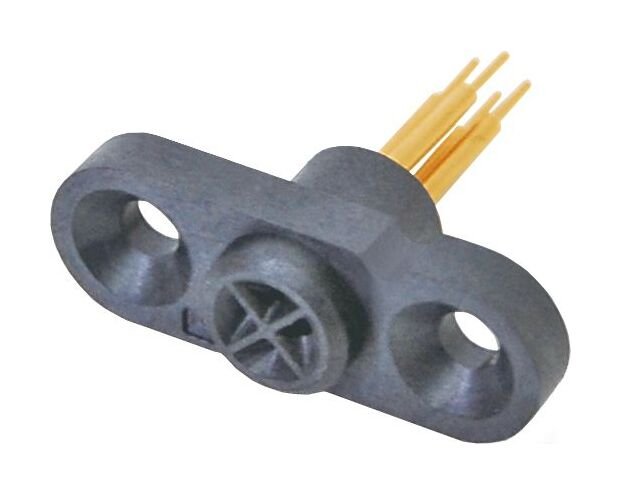

JCC 4-Pin Heat Resistant Laser Diode Socket with Flange
JCC 4-Pin Heat Resistant Laser Diode Socket with Flange
SKU:SOC-bb4306
High heat resistant JCC 4-Pin Laser Diode Socket with Flange, ensures durability and reliability up to 220 ºC. ESD protection and special design.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
JCC 4-Pin Heat Resistant Laser Diode Socket with Flange
$29.99
Quantity: 1
Claim Your Seller Account
JCC 4-Pin Heat Resistant Laser Diode Socket with Flange
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JCC 4-Pin Heat Resistant Laser Diode Socket with Flange is a premium-quality socket designed to withstand extreme temperatures up to 220 ºC, making it ideal for demanding applications. With high heat resistance and durable materials like copper alloy with gold plating, this socket ensures reliable performance and longevity. It features a special shape and pin arrangement, along with Electro-Static Discharge (ESD) protection, meeting stringent industry standards for stability and safety. Suitable for lead diameters ranging from 0.35 to 0.45 mm and insertion/removal cycles up to 10,000 times, this socket is a reliable choice for both consumer electronics enthusiasts and institutional buyers seeking top-notch quality.
Product Specifications
Acceptable Device Acceptable Lead Diameter
0.35 to 0.45 mm | 0.0138 to 0.0177 in
Acceptable Device Acceptable Lead Length
5.0 to 15.5 mm | 0.197 to 0.610 in
Acceptable Device Number Of Pins
4
Features
High temperature (max 220 ºC)High durability (max insertion/removal 10,000 times)Special shapeSpecial number of pins, pin arrangement, pitch circleElectro-Static Discharge (ESD)
Materials Contact Material
Copper Alloy, Gold (Au) Plating Over Nickel (Ni)
Materials Insulator Material
High Temperature Thermoplastic
Materials Sleeve Material
Copper Alloy, Gold (Au) Plating Over Nickel (Ni)
Specifications Alternating Current Ac Dielectric Strength 1 Minu
500 Vrms
Specifications Current Rating
2.0 A
Specifications Maximum Contact Resistance
15 MΩ
Specifications Maximum High Current
6 A
Specifications Minimum Insulation Resistance At 300 Volt V Direc
500 MΩ
Specifications Operating Temperature
-45 to 220 ºC

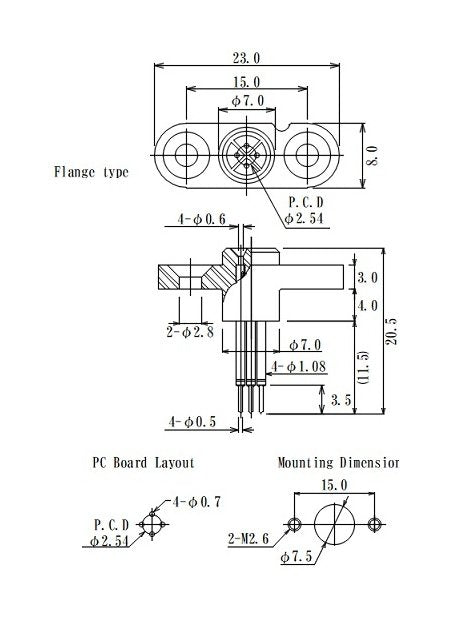

Specifications Pitch Circle Diameter
2.54 mm | 0.100 in
