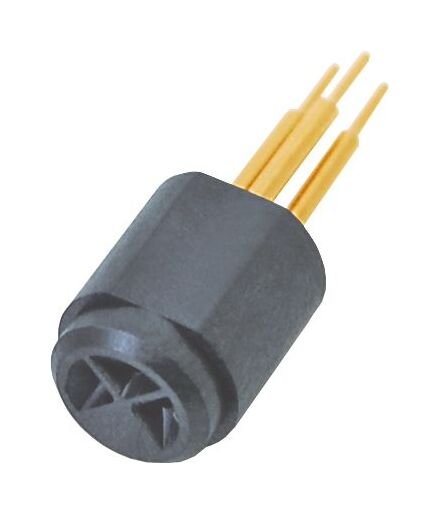

JCC 4-Pin High Heat Resistant Laser Diode Socket
JCC 4-Pin High Heat Resistant Laser Diode Socket
SKU:SOC-d83ded
Discover durability and reliability with the JCC 4-Pin High Heat Resistant Laser Diode Socket. Withstand up to 220ºC with ease!
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
JCC 4-Pin High Heat Resistant Laser Diode Socket
$29.99
Quantity: 1
Claim Your Seller Account
JCC 4-Pin High Heat Resistant Laser Diode Socket
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unmatched durability and precision with the JCC 4-Pin High Heat Resistant Laser Diode Socket. Engineered for high temperatures up to 220ºC, this socket boasts superior materials like copper alloy with gold plating for maximum conductivity. With a current rating of 2.0 A and ESD protection, it ensures reliable performance in demanding environments. Suitable for lead diameters of 0.35 to 0.45 mm, this socket is built for longevity, supporting up to 10,000 insertions/removals with ease.
Product Specifications
Acceptable Device Acceptable Lead Diameter
0.35 to 0.45 mm | 0.0138 to 0.0177 in
Acceptable Device Acceptable Lead Length
5.0 to 15.5 mm | 0.197 to 0.610 in
Acceptable Device Number Of Pins
4
Features
High temperature (max 220 ºC)High durability (max insertion/removal 10,000 times)Special shapeSpecial number of pins, pin arrangement, pitch circleElectro-Static Discharge (ESD)
Materials Contact Material
Copper Alloy, Gold (Au) Plating Over Nickel (Ni)
Materials Insulator Material
High Temperature Thermoplastic
Materials Sleeve Material
Copper Alloy, Gold (Au) Plating Over Nickel (Ni)
Specifications Alternating Current Ac Dielectric Strength 1 Minu
500 Vrms
Specifications Current Rating
2.0 A
Specifications Maximum Contact Resistance
15 MΩ
Specifications Maximum High Current
6 A
Specifications Minimum Insulation Resistance At 300 Volt V Direc
500 MΩ
Specifications Operating Temperature
-45 to 220 ºC

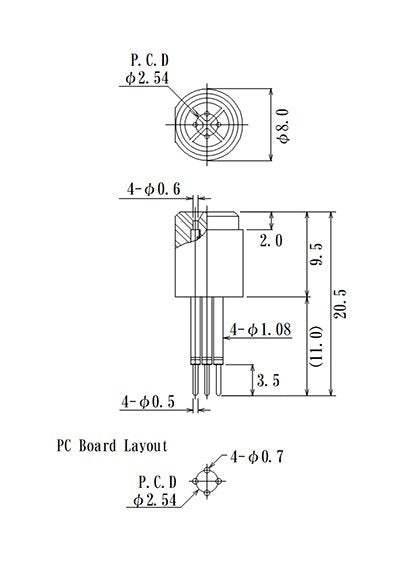

Specifications Pitch Circle Diameter
2.54 mm | 0.100 in
