JCC High Voltage Power Transistor Socket
JCC High Voltage Power Transistor Socket
SKU:SOC-704df8
High performance JCC socket for power transistors with high current and voltage resistance. Suitable for TO-247, TO-3P, etc.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
JCC High Voltage Power Transistor Socket
$29.99
Quantity: 1
Claim Your Seller Account
JCC High Voltage Power Transistor Socket
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

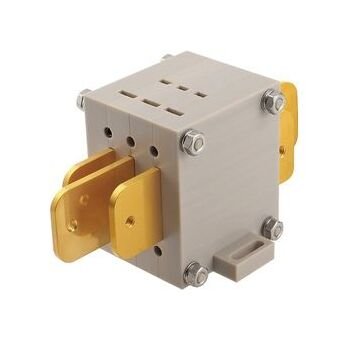

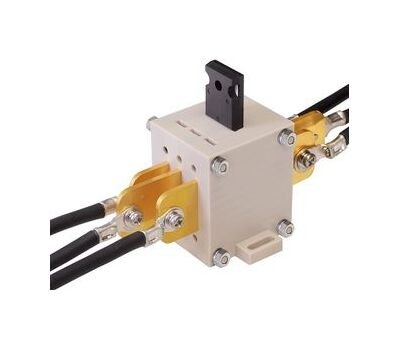

The JCC High Voltage Power Transistor Socket is a high-performance socket designed for 3-terminal or 4-terminal power transistor packages. With a maximum temperature rating of 250ºC, this socket offers Kelvin contact type for precise testing of semiconductor devices. It provides reliable high current handling, high voltage resistance of up to 3,000V, and exceptional heat resistance. Suitable for TO-247, TO-3P, TO-264, and TO-247 4L packages, this socket ensures durability with a minimum mating durability of 10,000 cycles and a maximum contact resistance of 20 mΩ.
Product Specifications
Additional Information
Compatible with packages such as TO-247, TO-3P, TO-264, TO247 4L, etc.High current : DC 60 AHigh pressure resistance : DC 3 kVHigh heat resistance : -55 to +250 ºC
Materials Body
High Temperature Thermoplastic
Materials Contact
Copper Alloy, Au plating over Ni
Specifications Acceptable Devices
TO-247 | TO-247 4L | TO-264 | TO-3P | Etc.
Specifications Direct Current Dc Rating At 25 Degree Celsius C T
60 A
Specifications Direct Current Dc Withstanding Voltage 1 Minute A
3,000 V
Specifications Maximum Contact Resistance
20 mΩ
Specifications Minimum Mating Durability
10,000 cycles
Specifications Note For Acceptable Devices
Some package might not be usable. Please call us.
Specifications Temperature Range
-55 to +250 ºC
