JCC LLC2 2-Pole Latch Lock Connector - Panel Mount
JCC LLC2 2-Pole Latch Lock Connector - Panel Mount
SKU:SOC-a53bff
Reliable JCC LLC2 2-Pole Latch Lock Connector with multi-point contact design, latch lock mechanism, and high durability for secure internal equipment wiring.
Regular price
$9.99
Regular price
Sale price
$9.99
Unit price
per
Initiate Order
JCC LLC2 2-Pole Latch Lock Connector - Panel Mount
$9.99
Quantity: 1
Claim Your Seller Account
JCC LLC2 2-Pole Latch Lock Connector - Panel Mount
$9.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

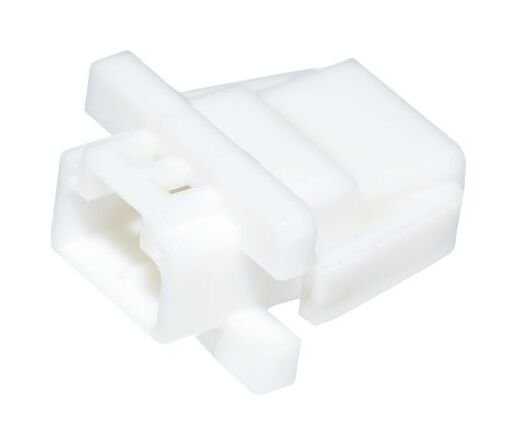

The JCC LLC2 Series Straight Wire Soldering Panel Mount 2-Pole Latch Lock Connector features a reliable multi-point contact round pin design for high reliability. Its housing-integrated latch lock mechanism suppresses fretting wear in vibration and shock environments. With a reverse insertion prevention mechanism, this connector offers durability with a 300-cycle rating. Designed for internal equipment wiring, it operates in temperatures ranging from -25 to 85 ºC, with options for heat resistance up to 150 ºC. Constructed with high-quality materials including copper alloy with gold plating, this connector ensures secure inter-device and signal wiring connections.
Product Specifications
Materials Contact Material
Copper Alloy, Gold (Au) Plating Over Nickel (Ni)
Materials Insulator Material
High Temperature Thermoplastic
Materials Plug Pin Material
Brass, Gold (Au) Plating Over Nickel (Ni)
Materials Sleeve Material
Brass, Gold (Au) Plating Over Nickel (Ni)
Materials Wire Bush Material
Elastomer
Specifications Alternating Current Ac Dielectric Strength 1 Minu
300 V
Specifications Application
Inter-Device Wiring | Internal Wiring of Equipment | Signal Wiring
Specifications Durability
300 cycle
Specifications Maximum Current Rating
1.2 A
Specifications Minimum Insulation Resistance
500 MΩ
Specifications Note For Maximum Current Rating

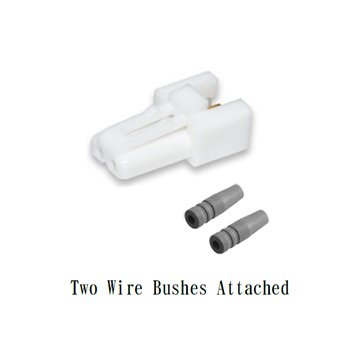

(When using two Wire Bushes, AWG #28;) (5A, Without Wire Bush, please contact us.)
Specifications Note For Operating Temperature Without Wire Bush
If you require heat-resistant specifications, please contact us for further information.
Specifications Operating Temperature
-25 to 85 ºC
Specifications Operating Temperature Without Wire Bush
-45 to 150 ºC
Specifications Pitch
2.54 mm
Specifications Series
LLC2
Specifications Type
Socket
