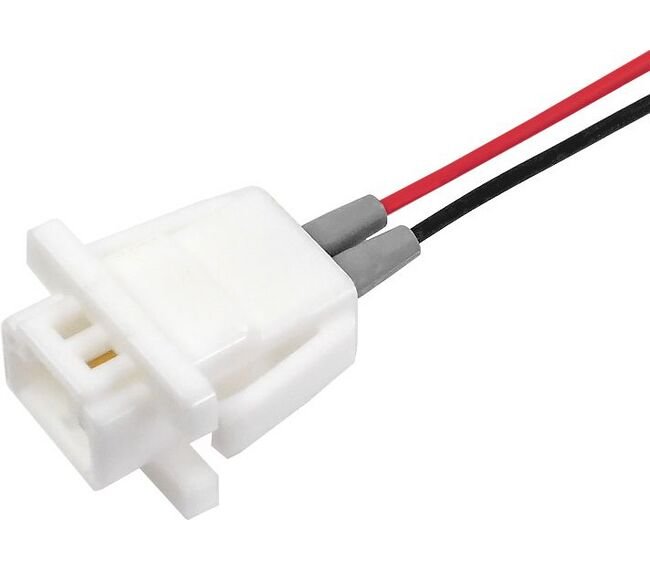

JCC LLC2 2-Pole Latch Lock Connector with 500mm Wire
JCC LLC2 2-Pole Latch Lock Connector with 500mm Wire
SKU:SOC-99ea3c
Reliable 2-Pole Latch Lock Connector with 500mm Wire for secure and stable connections in demanding environments.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
JCC LLC2 2-Pole Latch Lock Connector with 500mm Wire
$29.99
Quantity: 1
Claim Your Seller Account
JCC LLC2 2-Pole Latch Lock Connector with 500mm Wire
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

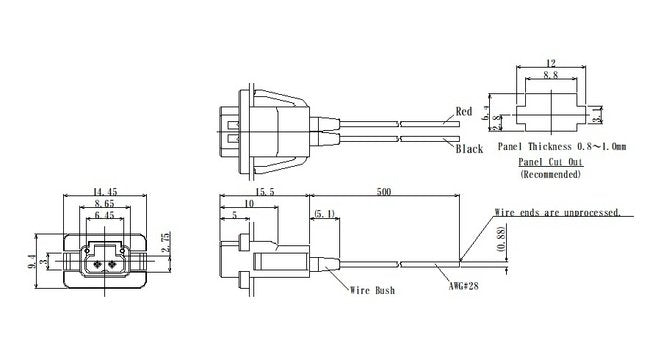

The JCC LLC2 Series Straight Panel Mount 2-Pole Latch Lock Connector with 500mm Wire offers unrivaled reliability with a multi-point contact round pin design. Featuring a housing-integrated latch lock mechanism, this connector is built to withstand vibration and shock environments, ensuring stable connections. With options for PC board or panel mounting, the reverse insertion prevention mechanism adds an extra layer of security. Soldering of wires is required for the plug and panel-mount socket, with easy front panel socket attachment. Crafted from high-quality materials, this connector excels in internal wiring of equipment, signal wiring, and inter-device wiring applications.
Product Specifications
Materials Contact Material
Copper Alloy, Gold (Au) Plating Over Nickel (Ni)
Materials Insulator Material
High Temperature Thermoplastic
Materials Plug Pin Material
Brass, Gold (Au) Plating Over Nickel (Ni)
Materials Sleeve Material
Brass, Gold (Au) Plating Over Nickel (Ni)
Materials Wire Bush Material
Elastomer
Specifications Alternating Current Ac Dielectric Strength 1 Minu
300 V
Specifications Application
Inter-Device Wiring | Internal Wiring of Equipment | Signal Wiring
Specifications Durability
300 cycle
Specifications Maximum Current Rating
1.2 A
Specifications Minimum Insulation Resistance
500 MΩ
Specifications Note For Maximum Current Rating
(When using two Wire Bushes, AWG #28;) (5A, Without Wire Bush, please contact us.)
Specifications Note For Operating Temperature Without Wire Bush
If you require heat-resistant specifications, please contact us for further information.
Specifications Operating Temperature
-25 to 85 ºC
Specifications Operating Temperature Without Wire Bush
-45 to 150 ºC
Specifications Pitch
2.54 mm
Specifications Series
LLC2
Specifications Type
Socket
