JCC LLC2 Series 2-Pole Latch Lock Connector
JCC LLC2 Series 2-Pole Latch Lock Connector
SKU:SOC-52c238
Reliable JCC LLC2 Series 2-Pole Latch Lock Connector for stable inter-device wiring and signal routing in various environments.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
JCC LLC2 Series 2-Pole Latch Lock Connector
$12.99
Quantity: 1
Claim Your Seller Account
JCC LLC2 Series 2-Pole Latch Lock Connector
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

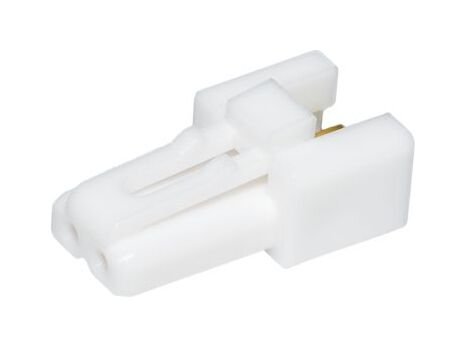

The JCC LLC2 Series Straight Wire Soldering 2-Pole Latch Lock Connector features a reliable multi-point contact round pin design for superior reliability. Its housing-integrated latch lock mechanism minimizes fretting wear in vibration and shock environments, with a reverse insertion prevention mechanism. Designed for ease of installation, it offers two mounting options for PC boards and panels. With high temperature thermoplastic insulator material and gold-plated copper alloy contacts, this connector ensures durability and stable performance in a wide temperature range. Ideal for inter-device wiring, internal equipment wiring, and signal routing.
Product Specifications
Materials Contact Material
Copper Alloy, Gold (Au) Plating Over Nickel (Ni)
Materials Insulator Material
High Temperature Thermoplastic
Materials Plug Pin Material
Brass, Gold (Au) Plating Over Nickel (Ni)
Materials Sleeve Material
Brass, Gold (Au) Plating Over Nickel (Ni)

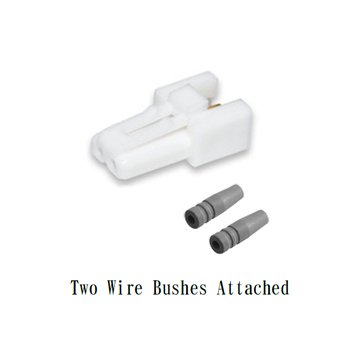

Materials Wire Bush Material
Elastomer
Specifications Alternating Current Ac Dielectric Strength 1 Minu
300 V
Specifications Application
Inter-Device Wiring | Internal Wiring of Equipment | Signal Wiring
Specifications Durability
300 cycle
Specifications Maximum Current Rating
1.2 A
Specifications Minimum Insulation Resistance
500 MΩ
Specifications Note For Maximum Current Rating
(When using two Wire Bushes, AWG #28;) (5A, Without Wire Bush, please contact us.)
Specifications Note For Operating Temperature Without Wire Bush
If you require heat-resistant specifications, please contact us for further information.
Specifications Operating Temperature
-25 to 85 ºC
Specifications Operating Temperature Without Wire Bush
-45 to 150 ºC

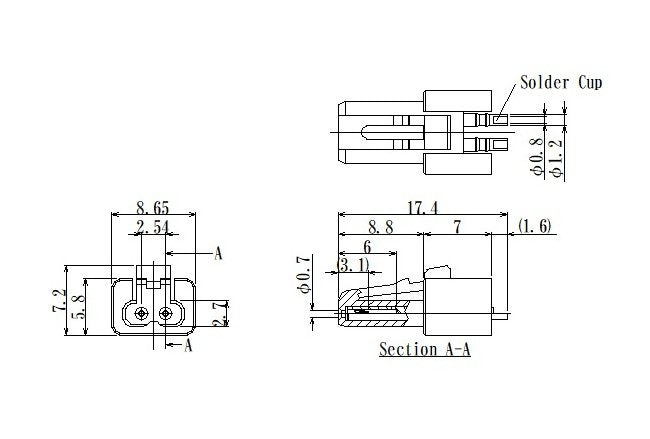

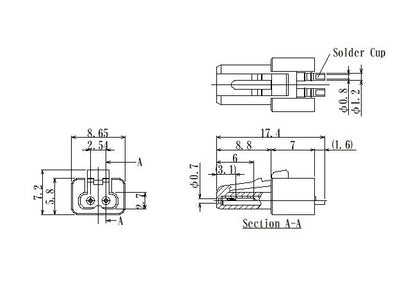

Specifications Pitch
2.54 mm
Specifications Series
LLC2
Specifications Type
Plug
