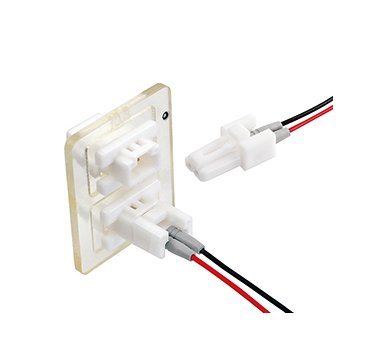

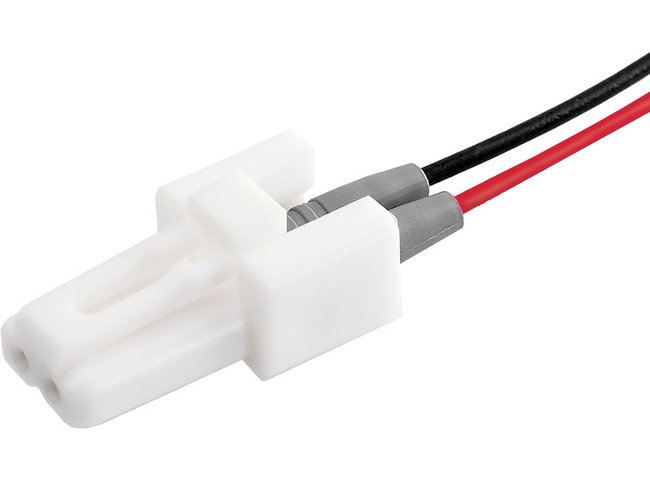

The JCC LLC2 Series Straight 2-Pole Latch Lock Connector with 500mm Wire offers a reliable multi-point contact round pin design for high reliability. Its housing-integrated latch lock mechanism prevents fretting wear in vibration and shock environments, with a reverse insertion prevention feature for added durability. Ideal for inter-device, internal, and signal wiring applications, this connector ensures secure connections and meets strict quality standards for long-lasting performance.
Product Specifications
Materials Contact Material
Copper Alloy, Gold (Au) Plating Over Nickel (Ni)
Materials Insulator Material
High Temperature Thermoplastic
Materials Plug Pin Material
Brass, Gold (Au) Plating Over Nickel (Ni)
Materials Sleeve Material
Brass, Gold (Au) Plating Over Nickel (Ni)
Materials Wire Bush Material
Elastomer
Specifications Alternating Current Ac Dielectric Strength 1 Minu
300 V
Specifications Application
Inter-Device Wiring | Internal Wiring of Equipment | Signal Wiring
Specifications Durability
300 cycle
Specifications Maximum Current Rating
1.2 A
Specifications Minimum Insulation Resistance
500 MΩ
Specifications Note For Maximum Current Rating
(When using two Wire Bushes, AWG #28;) (5A, Without Wire Bush, please contact us.)
Specifications Note For Operating Temperature Without Wire Bush
If you require heat-resistant specifications, please contact us for further information.
Specifications Operating Temperature
-25 to 85 ºC
Specifications Operating Temperature Without Wire Bush
-45 to 150 ºC
Specifications Pitch
2.54 mm
Specifications Series
LLC2
Specifications Type
Plug
