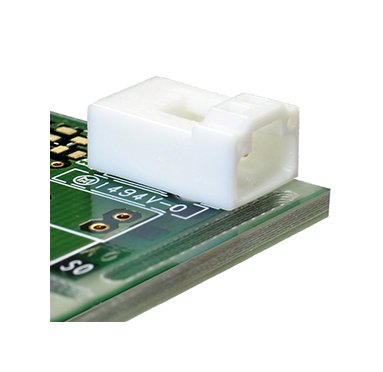

JCC LLC2 Series PC Board Mount Right Angle 2-Pole Latch Lock Connector
JCC LLC2 Series PC Board Mount Right Angle 2-Pole Latch Lock Connector
SKU:SOC-457064
Highly reliable 2-pole latch lock connector with multi-point contact round pin design and latch lock mechanism for vibration/shock resistance. Ideal for inter-device and internal equipment wiring.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
JCC LLC2 Series PC Board Mount Right Angle 2-Pole Latch Lock Connector
$12.99
Quantity: 1
Claim Your Seller Account
JCC LLC2 Series PC Board Mount Right Angle 2-Pole Latch Lock Connector
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JCC LLC2 Series PC Board Mount Right Angle 2-Pole Latch Lock Connector ensures high reliability with its multi-point contact round pin design, ideal for vibration and shock environments. Featuring a housing-integrated latch lock mechanism to prevent fretting wear, this connector offers reverse insertion prevention for added safety. With options for both PC board and panel mounting, soldering wire is required for the plug and panel-mount socket. Designed for durability with a cycle rating of 300 and a temperature range of -25 to 85 ºC, this connector meets the stringent requirements for inter-device wiring, internal equipment wiring, and signal wiring applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Materials Contact Material
Copper Alloy, Gold (Au) Plating Over Nickel (Ni)
Materials Insulator Material
High Temperature Thermoplastic
Materials Plug Pin Material
Brass, Gold (Au) Plating Over Nickel (Ni)
Materials Sleeve Material
Brass, Gold (Au) Plating Over Nickel (Ni)
Materials Wire Bush Material
Elastomer
Specifications Alternating Current Ac Dielectric Strength 1 Minu
300 V
Specifications Application
Inter-Device Wiring | Internal Wiring of Equipment | Signal Wiring
Specifications Durability
300 cycle
Specifications Maximum Current Rating
1.2 A
Specifications Minimum Insulation Resistance
500 MΩ
Specifications Note For Maximum Current Rating
(When using two Wire Bushes, AWG #28;) (5A, Without Wire Bush, please contact us.)
Specifications Note For Operating Temperature Without Wire Bush
If you require heat-resistant specifications, please contact us for further information.
Specifications Operating Temperature
-25 to 85 ºC
Specifications Operating Temperature Without Wire Bush
-45 to 150 ºC
Specifications Pitch
2.54 mm
Specifications Series
LLC2
Specifications Type
Socket
