JCC LPDDR Test Sockets with High Durability - 0.4mm Pitch
JCC LPDDR Test Sockets with High Durability - 0.4mm Pitch
SKU:TES-4c8ecb
Enhance testing efficiency with JCC's LPDDR Test Sockets - high durability, easy attachment, and reliable performance.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
JCC LPDDR Test Sockets with High Durability - 0.4mm Pitch
$39.99
Quantity: 1
Claim Your Seller Account
JCC LPDDR Test Sockets with High Durability - 0.4mm Pitch
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

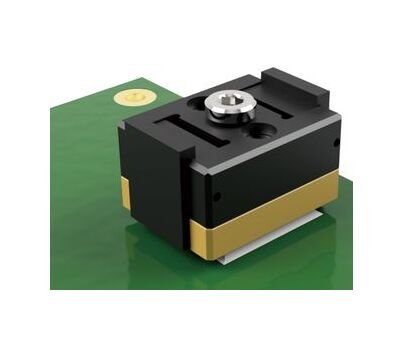

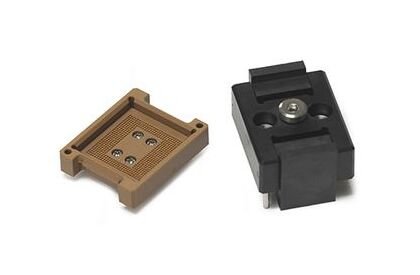

Upgrade your testing setup with JCC's High Durability LPDDR Test Sockets. Designed for LPDDR2 to LPDDR5 devices, these sockets feature a 0.4mm pitch and 0.25mm solder ball diameter. With a maximum contact resistance of 100 mΩ and 10,000 cycles durability, they ensure reliable performance in operating temperatures from -55 to +150 ºC. Secure your devices effortlessly with left and right latches and customizable designs for optimal fit.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Acceptable Devices
LPDDR2 | LPDDR3 | LPDDR4 | LPDDR4X | LPDDR5 | MDDR
Specifications Acceptable Device Type
BGA | Etc. | LGA | QFN
Specifications Current Rating
0.5 A
Specifications Maximum Contact Resistance
100 mΩ
Specifications Minimum Durability
10,000 cycles
Specifications Operating Temperature
-55 to +150 ºC
Specifications Pitch
0.4 mm or more
Specifications Solder Ball Diameter
0.25 mm
