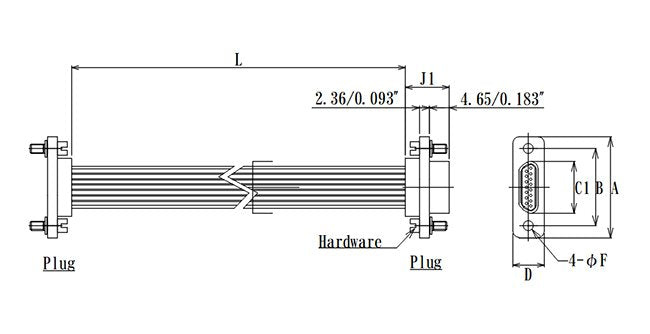

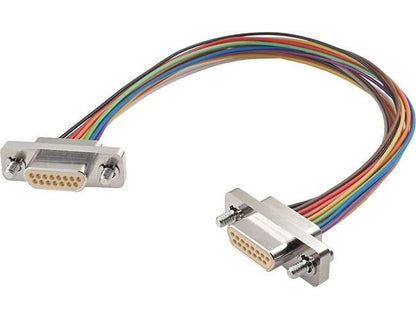

The JCC Metal Shell Type Micro-D Connector with Double Side Insulated Wire is a robust hermetic connector designed for vacuum environments. Featuring a metal shell made of Aluminum or Stainless Steel, this connector ensures reliable performance in extreme conditions. With a temperature range of -55 to 150 ºC, polyetheretherketone (PEEK) insulator material, and gold-plated copper alloy contacts, it offers superior durability and electrical conductivity. Available in various pin configurations, this connector is ideal for applications requiring high insulation resistance and dielectric strength.
Product Specifications
Accessories
Item # - VCMD-HEX256-PP-L120-SETDescription - These are Micro D-sub connectors suitable for use on the vacuum side.Type - Hex Jack PostCode - PMaterials - Steel Use Stainless (SUS304)Item # - VCMD-HEX256-PP-L150-SETDescription - These are Micro D-sub connectors suitable for use on the vacuum side.Type - Hex Jack PostCode - P15Materials - Steel Use Stainless (SUS304)Item # - VCMD-256-SS-L86-SETDescription - These are Micro D-sub connectors suitable for use on the vacuum side.Type - Jack ScrewCode - SMaterials - Steel Use Stainless (SUS304)Item # - VCMD-256-RP16-L12-SETDescription - These are Micro D-sub connectors suitable for use on the vacuum side.Type - Jack Post Rear Panel MountCode - RP16Materials - Steel Use Stainless (SUS304)Item # - VCMD-256-RP24-L12-SETDescription - These are Micro D-sub connectors suitable for use on the vacuum side.Type - Jack Post Rear Panel MountCode - RP24Materials - Steel Use Stainless (SUS304)Item # - VCMD-256-RP4-L12-SETDescription - These are Micro D-sub connectors suitable for use on the vacuum side.Type - Jack Post Rear Panel MountCode - RP40Materials - Steel Use Stainless (SUS304)
Specifications Alternating Current Ac Dielectric Withstanding Vo
600 Vrms
Specifications Contact Material
Copper Alloy, Gold (Au) Plating Over Nickel (Ni)
Specifications Current Rating At 25 Degree Celsius C Temperature
1 A
Specifications Insulator Material
Polyetheretherketone (PEEK)
Specifications Minimum Insulation Resistance
1000 MΩ
Specifications Number Of Plug Pins
15 | 21 | 25 | 9
Specifications Number Of Receptacle Pins
15 | 21 | 25 | 9
Specifications Pitch
1.27 mm | 0.050 in
Specifications Shell Material
Aluminum | Steel Use Stainless (SUS304)
Specifications Temperature Range
-55 to 150 ºC
Specifications Type
Plug to Plug | Receptacle to Receptacle
