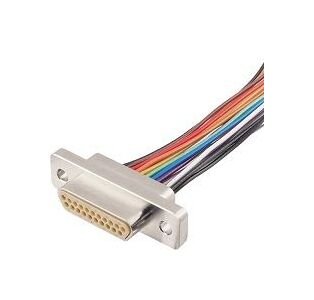

JCC Plug Micro-D Connector with Insulated Wire for Vacuum Environment
JCC Plug Micro-D Connector with Insulated Wire for Vacuum Environment
SKU:HER-10c5d2
High-quality JCC Micro-D Connector for vacuum applications. Durable metal shell, precise construction, and reliable performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
JCC Plug Micro-D Connector with Insulated Wire for Vacuum Environment
$29.99
Quantity: 1
Claim Your Seller Account
JCC Plug Micro-D Connector with Insulated Wire for Vacuum Environment
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JCC Plug Micro-D Connector is engineered for vacuum side applications with its durable metal shell and hermetically sealed design. Meeting stringent requirements, this connector boasts a robust construction made of Aluminum/Steel SUS304 for the shell, Polyetheretherketone (PEEK) for insulators, and Copper Alloy with Gold plating for contacts. With a pitch of 1.27mm and a temperature range of -55 to 150ºC, it ensures reliable performance in challenging environments. Available in configurations of 9, 15, 21, or 25 pins, it guarantees secure and efficient connections for your critical systems.
Product Specifications
Accessories
Item # - VCMD-HEX256-PP-L120-SETDescription - These are Micro D-sub connectors suitable for use on the vacuum side.Type - Hex Jack PostCode - PMaterials - Steel Use Stainless (SUS304)Item # - VCMD-HEX256-PP-L150-SETDescription - These are Micro D-sub connectors suitable for use on the vacuum side.Type - Hex Jack PostCode - P15Materials - Steel Use Stainless (SUS304)Item # - VCMD-256-SS-L86-SETDescription - These are Micro D-sub connectors suitable for use on the vacuum side.Type - Jack ScrewCode - SMaterials - Steel Use Stainless (SUS304)Item # - VCMD-256-RP16-L12-SETDescription - These are Micro D-sub connectors suitable for use on the vacuum side.Type - Jack Post Rear Panel MountCode - RP16Materials - Steel Use Stainless (SUS304)Item # - VCMD-256-RP24-L12-SETDescription - These are Micro D-sub connectors suitable for use on the vacuum side.Type - Jack Post Rear Panel MountCode - RP24Materials - Steel Use Stainless (SUS304)Item # - VCMD-256-RP4-L12-SETDescription - These are Micro D-sub connectors suitable for use on the vacuum side.Type - Jack Post Rear Panel MountCode - RP40Materials - Steel Use Stainless (SUS304)
Specifications Alternating Current Ac Dielectric Withstanding Vo
600 Vrms
Specifications Contact Material
Copper Alloy, Gold (Au) Plating Over Nickel (Ni)
Specifications Current Rating At 25 Degree Celsius C Temperature
1 A
Specifications Insulator Material
Polyetheretherketone (PEEK)
Specifications Minimum Insulation Resistance
1000 MΩ
Specifications Number Of Pins
9 | 15 | 21 | 25
Specifications Pitch
1.27 mm | 0.050 in
Specifications Shell Material
Aluminum | Steel Use Stainless (SUS304)
Specifications Temperature Range
-55 to 150 ºC
Specifications Type
Plug
