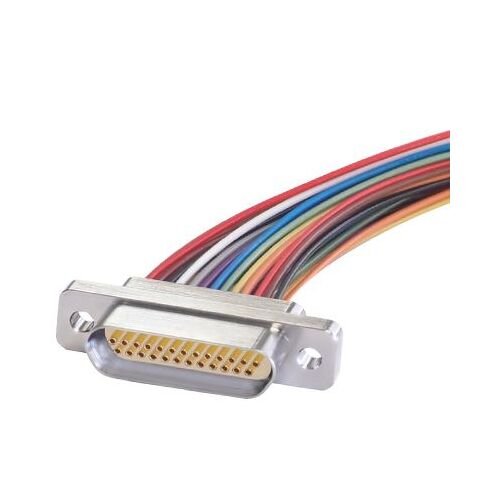

JCC Receptacle Micro-D Connector with Insulated Wire for Vacuum Environment - 25 Pins
JCC Receptacle Micro-D Connector with Insulated Wire for Vacuum Environment - 25 Pins
SKU:HER-0536d7
Durable JCC Receptacle Micro-D Connector for vacuum environments; high-quality materials for reliable performance.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
JCC Receptacle Micro-D Connector with Insulated Wire for Vacuum Environment - 25 Pins
$39.99
Quantity: 1
Claim Your Seller Account
JCC Receptacle Micro-D Connector with Insulated Wire for Vacuum Environment - 25 Pins
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JCC Receptacle Micro-D Connector is specifically designed for vacuum environments, featuring a metal shell for durability. With a wide temperature range of -55 to 150 ºC, this receptacle ensures reliable performance in varying conditions. Its aluminum/steel shell, Polyetheretherketone (PEEK) insulator, and Copper Alloy contact material guarantee high-quality connections. Suitable for hermetic applications, this connector meets rigorous standards for insulation resistance, dielectric voltage, and current rating, making it ideal for critical industrial and aerospace environments.
Product Specifications
Accessories
Item # - VCMD-HEX256-PP-L120-SETDescription - These are Micro D-sub connectors suitable for use on the vacuum side.Type - Hex Jack PostCode - PMaterials - Steel Use Stainless (SUS304)Item # - VCMD-HEX256-PP-L150-SETDescription - These are Micro D-sub connectors suitable for use on the vacuum side.Type - Hex Jack PostCode - P15Materials - Steel Use Stainless (SUS304)Item # - VCMD-256-SS-L86-SETDescription - These are Micro D-sub connectors suitable for use on the vacuum side.Type - Jack ScrewCode - SMaterials - Steel Use Stainless (SUS304)Item # - VCMD-256-RP16-L12-SETDescription - These are Micro D-sub connectors suitable for use on the vacuum side.Type - Jack Post Rear Panel MountCode - RP16Materials - Steel Use Stainless (SUS304)Item # - VCMD-256-RP24-L12-SETDescription - These are Micro D-sub connectors suitable for use on the vacuum side.Type - Jack Post Rear Panel MountCode - RP24Materials - Steel Use Stainless (SUS304)Item # - VCMD-256-RP4-L12-SETDescription - These are Micro D-sub connectors suitable for use on the vacuum side.Type - Jack Post Rear Panel MountCode - RP40Materials - Steel Use Stainless (SUS304)
Specifications Alternating Current Ac Dielectric Withstanding Vo
600 Vrms
Specifications Contact Material
Copper Alloy, Gold (Au) Plating Over Nickel (Ni)
Specifications Current Rating At 25 Degree Celsius C Temperature
1 A
Specifications Insulator Material
Polyetheretherketone (PEEK)
Specifications Minimum Insulation Resistance
1000 MΩ
Specifications Number Of Pins
9 | 15 | 21 | 25
Specifications Pitch
1.27 mm | 0.050 in
Specifications Shell Material
Aluminum | Steel Use Stainless (SUS304)
Specifications Temperature Range
-55 to 150 ºC
Specifications Type
Receptacle
