JCC UJMPT Series 6.0mm Diameter D Thread High Current Plug Pin
JCC UJMPT Series 6.0mm Diameter D Thread High Current Plug Pin
SKU:HIG-e3ae97
High current plug pin with 6.0mm diameter, silver plating, and 90A current rating. Ideal for industrial applications.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
JCC UJMPT Series 6.0mm Diameter D Thread High Current Plug Pin
$14.99
Quantity: 1
Claim Your Seller Account
JCC UJMPT Series 6.0mm Diameter D Thread High Current Plug Pin
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

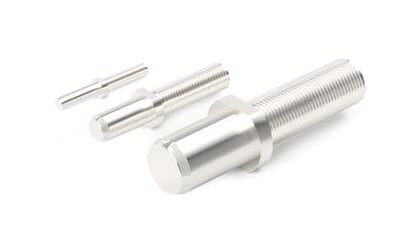

The JCC UJMPT Series 6.0mm Diameter D Thread High Current Plug Pin is a reliable electrical connector designed for high current applications. With a silver plating for enhanced conductivity, this plug pin has a diameter of 6.0mm and a maximum current rating of 90A at 25°C. Its robust construction ensures secure attachment to bus bars, insulated panels, round terminals, and threaded conductors. Perfect for customized setups, this plug pin is ideal for demanding industrial environments. Note: Washers, spring washers, and nuts are not included.
Product Specifications
Specifications Diameter B
8.3 mm
Specifications Diameter D
6.0 mm
Specifications Dimension L
53.0 mm
Specifications Dimension M
M6 x 1.0P mm
Specifications Dimension Ml
27.0 mm
Specifications Dimension Pl
22.5 mm
Specifications Dimension S
3.5 mm
Specifications Dimension Sw
8.0 mm
Specifications Maximum Current Rating A At 25 Degree Celsius C T
90 A
Specifications Plating
Silver (Ag)
Specifications Series
UJMPT
Specifications Thread Type
Coarse Thread mm
