JCC UJMPT Series 6.0mm Thread Type High Current Plug Pin

Name: JCC UJMPT Series 6.0mm Thread Type High Current Plug Pin
Brand: JC CHERRY INC.
SKU: HIG-614460
Price: 12.99 USD
Availability: OutOfStock

SKU:HIG-614460

Premium JCC UJMPT 6.0mm Thread High Current Plug Pin for maximum 85A current handling. Ideal for high voltage applications.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

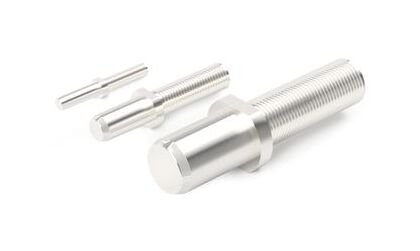

The JCC UJMPT Series 6.0mm Diameter D Thread Type High Current Plug Pin is a premium-grade plug pin designed for high current and high voltage applications. With a gold (Au) plating, this plug pin ensures excellent conductivity and durability. It features a 6.0mm diameter D, M6 x 1.0P mm thread type, and can handle a maximum current rating of 85A at 25°C. Its dimensions and sturdy construction make it suitable for attaching to bus bars, insulated panels, and round terminals. Custom designs are available to meet specific requirements. Note that washers, spring washers, and nuts are not included.

Product Specifications

Specifications Diameter B

8.3 mm

Specifications Diameter D

6.0 mm

Specifications Dimension L

50.0 mm

Specifications Dimension M

M6 x 1.0P mm

Specifications Dimension Ml

24.0 mm

Specifications Dimension Pl

22.5 mm

Specifications Dimension S

3.5 mm

Specifications Dimension Sw

6.8 mm

Specifications Maximum Current Rating A At 25 Degree Celsius C T

85 A

Specifications Plating

Gold (Au)

Specifications Series

UJMPT

Specifications Thread Type

Coarse Thread mm
